GENERAL
		Nominal Voltage	48V
		Nominal Capacity	160Ah
		Capacity @ 32A	300 min
		Energy	7680Wh
		Resistance	≤30mΩ @ 50% SOC
		Cell Type	LFP Aluminum Shell
		Series & Parallel	15S1P
Parameter		MECHANICAL
Recommended Charge Current	50A	Dimension (H x W x L)	280*400*520 mm
Max. Charge Current	100A	Approx. Weight	approx. 69kg
Recommended Charge Voltage	54.0V (3.60V/Cell)	Connector	Optional
Recommended Discharge Current	50A	Case Material	Iron+ Paint
Max. Discharge Current	100A	Enclosure Protection	IP53
Recommended Discharge Voltage	40.5V
BMS Charge Cut-Off Voltage	58.5V (1s)  (3.90V/Cell)	TEMPERATURE
BMS Discharge Cut-Off Voltage	34.5V (1s)  (2.30V/Cell)	Discharge Temperature	-4 ~ 140 ºF (-20 ~ 60 ºC)
BMS Discharge Cut-Off Current	250A ~400 A (50~150ms)	Charge Temperature	32 ~ 113 ºF (0 ~ 45 ºC)
BMS Communication Protocol	Optional	Storage Temperature	23 ~ 95 ºF (-5 ~ 35 ºC)
Support Parameter Adjust	Optional	COMPLIANCE
Cellphone App	Optional	Certifications	UL1642/IEC62133 (cells)
Monitor	Not Available	Shipping Classification	UN 3480

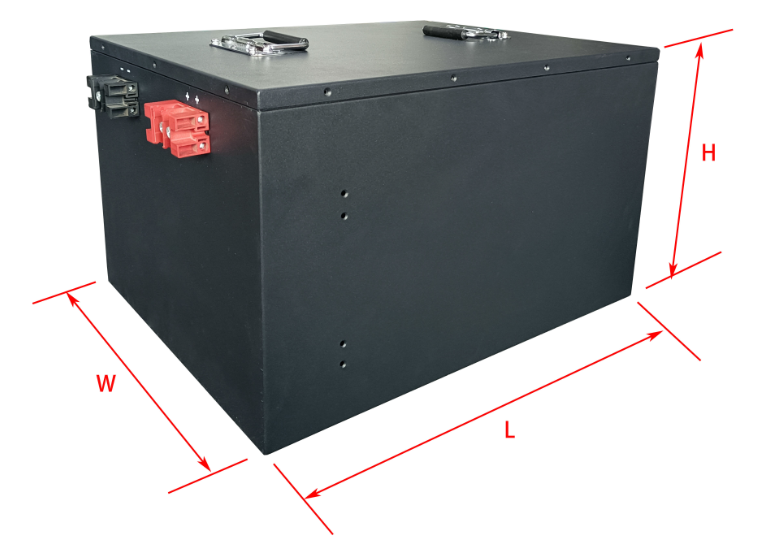

Outline Dimension

Performance Characteristics

Battery Comparisons

This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.

All calculations are based on cycling to 50% capacity retention for fair comparisons.

Efficiency	5.0	5.0	3.0	3.0	3.0
Longevity	5.0	3.0	3.0	1.0	1.0
Cost Per Lifetime KWH	5.0	3.5	4.3	3.0	1.5
Safety	5.0	4.0	4.8	4.5	4.8
Voltage Stability	4.8	4.5	3.5	3.0	3.0
Charge Speed	4.0	5.0	1.5	1.0	1.0

FEATURES & BENEFITS

High cycle life:

More than 4000 cycles @50% DOD for effectively lower total cost of ownership.

Longer service life:

Low maintenance batteries with stable chemistry.

Built in circuit protection:

Battery Management System (BMS) is incorporated against abuse.

Better storage:

Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.

Quickly recharge:

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance:

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight:

Lithium batteries provide more Wh/Kg.

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, Ni-Mh or Ni-Cd type batteries.

Suitable applications include:

    •Household ESS

    •Off-Grid System

    •Solar Home System

    •Industrial Equipment

    •E-Mobility/ Electric Boat

    •UPS/DC-AC

    •Any Application where discharging or charging in backup is necessary

CAUTIONS

    •Do NOT short circuit, reverse polarity, crush or disassemble.

    •Do NOT heat or incinerate.

    •Do NOT immerse in any liquid.

    •Only use LiFePO4 charger

    •Store at 30~50% SOC. Recharging every 3 months is recommended.

    •The storage area should be clean, cool, dry and ventilated.

    SES Power's Energy Storage System

        Use renewable energy at everywhere –SES Power's energy storage solutions makes it possible.  Energy storage solutions with an integrated safety concept offer highly efficient and flexible energy storage at anywhere for private and commercial applications.

        Cell is the key component in battery pack so that SES Power will use NMC/LiFepO4 cells from CATL,EVE,BYD,BAK, LG ,Samsung, Panasonic or first class manufacturer in China to offer customer battery solution for your needed.

        With the lithium-ion energy storage modules, the generated photovoltaic energy and grid excess energy can be stored in battery modules and easily be made available at a later time.  Surplus energy is no longer lost.

        With SES Power's ESS energy storage system, energy users become less dependent on electricity prices and can use their own eco-power whenever they need it.
