 | GENERAL |
| Nominal Voltage | 3.2V |
| Nominal Capacity | 1.5Ah |
| Capacity @ 300mA | 300 min |
| Energy | 4.8Wh |
| Resistance | ≤100 mΩ @ 50% SOC |
| Cell Type | IFR18650E |
| Series & Parallel | 1S1P |
| Parameter | MECHANICAL |
| Recommended Charge Current | 750mA | Dimension (H x D) | 18.5*69.0 mm |
| Max. Charge Current | 1500mA | Approx. Weight | approx. 58g |
| Recommended Charge Voltage | 3.65 V | Connector | Molex-5557-2P |
| Recommended Discharge Current | 750mA | Case Material | PVC |
| Max. Discharge Current | 2000mA | Enclosure Protection | IP30 |
| Recommended Discharge Voltage | 2.7V |
|
| BMS Charge Cut-Off Voltage | 3.90V (1s) (3.90V/Cell) | TEMPERATURE |
| BMS Discharge Cut-Off Voltage | 2.55V (1s) (2.55V/Cell) | Discharge Temperature | -4~140 ºF (-20 ~ 60 ºC) |
| BMS Discharge Cut-Off Current | 5A ~10A (50~150ms) | Charge Temperature | 32~113 ºF (0 ~ 45 ºC) |
| BMS Communication Protocol | Not Available | Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| Support Parameter Adjust | Not Available | COMPLIANCE |
| Cellphone App | Not Available | Certifications | UL1642/IEC62133 (cells) |
| Monitor | Not Available | Shipping Classification | UN 3480 |

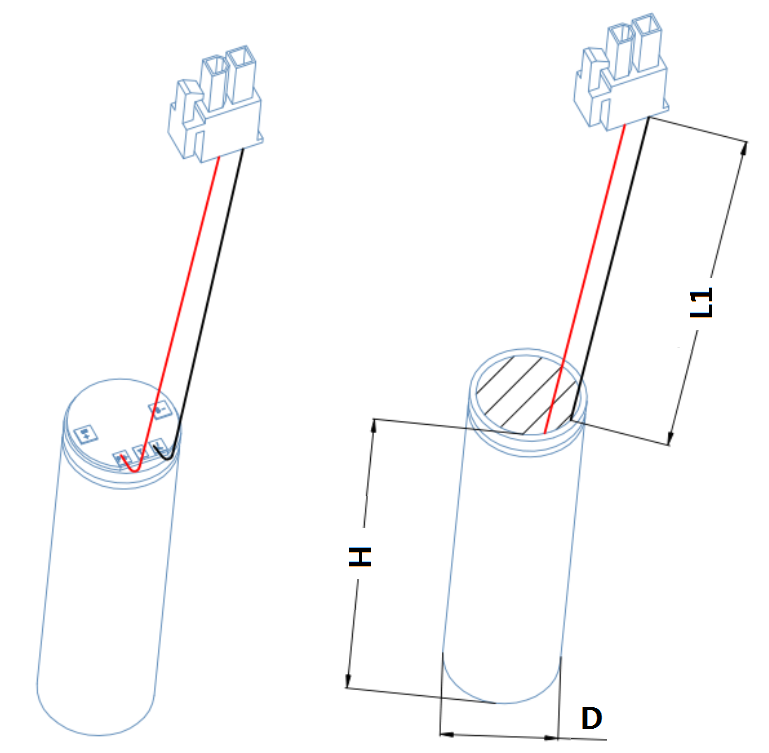

Outline Dimension
| D | H
| L1 |
| 18.5±1mm | 67±2mm | Customized |
Performance Characteristics
Battery Comparisons
This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.
All calculations are based on cycling to 50% capacity retention for fair comparisons.
|  |  |  |  |  |
| Efficiency | 5.0 | 5.0 | 3.0
| 3.0
| 3.0 |
| Longevity | 5.0 | 3.0 | 3.0 | 1.0 | 1.0 |
| Cost Per Lifetime KWH | 5.0 | 3.5 | 4.3 | 3.0 | 1.5 |
| Safety | 5.0 | 4.0 | 4.8 | 4.5 | 4.8 |
| Voltage Stability | 4.8 | 4.5 | 3.5 | 3.0 | 3.0 |
| Charge Speed | 4.0 | 5.0 | 1.5 | 1.0 | 1.0 |
FEATURES & BENEFITS
High cycle life:
More than 4000 cycles @50% DOD for effectively lower total cost of ownership.
Longer service life:
Low maintenance batteries with stable chemistry.
Built in circuit protection:
Battery Management System (BMS) is incorporated against abuse.
Better storage:
Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.
Quickly recharge:
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance:
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight:
Lithium batteries provide more Wh/Kg.
APPLICATIONS
Lithium Iron Phosphate can be used in most applications that use Lead Acid, Ni-Mh or Ni-Cd type batteries.
Suitable applications include:
•Consumer Electronics
•Built -in Equipment
•Electronic Toy
•Electronic Tool
•Small Solar System
•Monitoring Equipment
•Robot
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Only use LiFePO4 charger
•Store at 30~50% SOC. Recharging every 3 months is recommended.
•The storage area should be clean, cool, dry and ventilated.
