 | GENERAL |
| Nominal Voltage | 14.8V |
| Nominal Capacity | 12Ah |
| Capacity @ 2.4A | 300 min |
| Energy | 177.6Wh |
| Resistance | ≤120 mΩ @ 50% SOC |
| Cell Type | INR18650E |
| Series & Parallel | 4S4P |
| Parameter | MECHANICAL |
| Recommended Charge Current | 5A | Dimension (H x W x L) | 71*80*78 mm |
| Max. Charge Current | 10A | Approx. Weight | approx. 900g |
| Recommended Charge Voltage | 16.8V (4.20V/Cell) | Connector | Optional |
| Recommended Discharge Current | 5A | Case Material | PVC |
| Max. Discharge Current | 10A | Enclosure Protection | IP53(Optional) |
| Recommended Discharge Voltage | 12.0V |
|
| BMS Charge Cut-Off Voltage | 17.2V (1s) (4.30V/Cell) | TEMPERATURE |
| BMS Discharge Cut-Off Voltage | 10.8V (1s) (2.70V/Cell) | Discharge Temperature | -40~140 ºF (-40 ~60 ºC) |
| BMS Discharge Cut-Off Current | 20A ~40A (50~150ms) | Charge Temperature | -4 ~ 113 ºF (-20 ~ 45 ºC) |
| BMS Communication Protocol | Not Available | Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| Support Parameter Adjust | Not Available | COMPLIANCE |
| Cellphone App | Not Available | Certifications | UL1642/IEC62133 (cells) |
| Monitor | Not Available | Shipping Classification | UN 3480 |

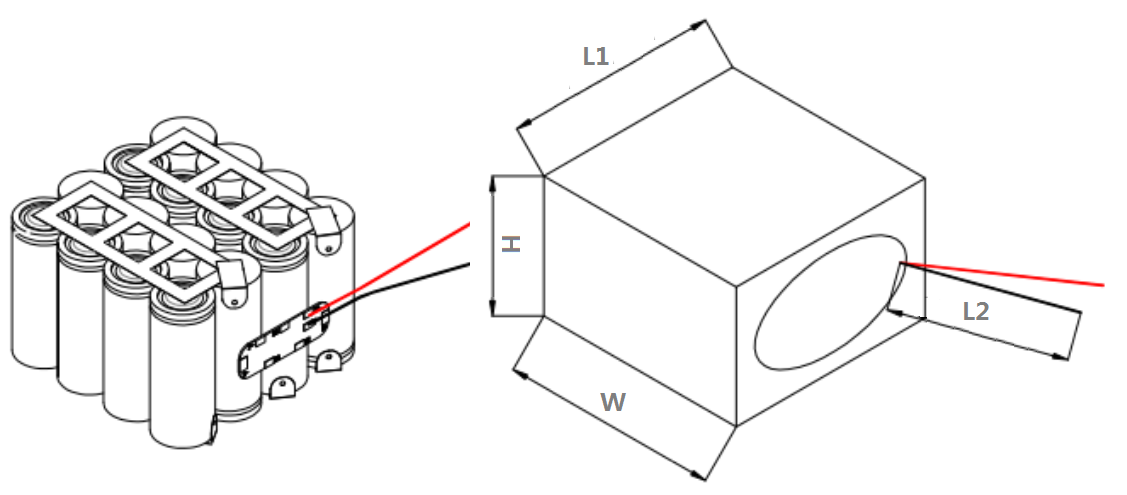

Outline Dimension
| H | W | L1 | L2 |
| 71±3mm | 80±3mm | 78±3mm | Customizable |
Performance Characteristics
Battery Comparisons
This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.
All calculations are based on cycling to 50% capacity retention for fair comparisons.
|  |  |  |  |  |
| Efficiency | 5.0 | 5.0 | 3.0
| 3.0
| 3.0 |
| Longevity | 5.0 | 3.0 | 3.0 | 1.0 | 1.0 |
| Cost Per Lifetime KWH | 5.0 | 3.5 | 4.3 | 3.0 | 1.5 |
| Safety | 5.0 | 4.0 | 4.8 | 4.5 | 4.8 |
| Voltage Stability | 4.8 | 4.5 | 3.5 | 3.0 | 3.0 |
| Charge Speed | 4.0 | 5.0 | 1.5 | 1.0 | 1.0 |
FEATURES & BENEFITS
High cycle life:
More than 2000 cycles @50% DOD for effectively lower total cost of ownership.
Longer service life:
Low maintenance batteries with stable chemistry.
Built in circuit protection:
Battery Management System (BMS) is incorporated against abuse.
Better storage:
Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.
Quickly recharge:
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance:
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight:
Lithium batteries provide more Wh/Kg.
APPLICATIONS
Lithium Ion battery can be used in most applications that use Lead Acid, Ni-Mh or Ni-Cd type batteries.
Suitable applications include:
•Consumer Electronics
•Built -in Equipment
•Handheld Device
•Electronic Tool
•Solar System
•Monitoring Equipment
•Electronic Device and more
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Only use Lithium-ion charger
•Store at 30~50% SOC. Recharging every 3 months is recommended.
•The storage area should be clean, cool, dry and ventilated.
SES Power's Household Appliances Battery List
SES Power are the ideal partner if you are looking to manufacture Household appliances battery battery with a company who has vast experience in this area. We have nearly 20 years of experience in customizing lithium batteries,so we can always find the best solution for you at your request. Not only the performance is excellent, but also the price is reasonable.
Cell is the key component in battery pack so that SES Power will use NMC/LiFepO4 cells from CATL, EVE, BYD, BAK, LG, Samsung, Panasonic or first class manufacturer in China to offer customer battery solution for your needed.
1)SES Power's Protable Power Station Battery Model List
If you are interested in a model, please click on the corresponding name in MODEL NO.
| Model No | Battery Rate Voltage (V) | Battery Rate Capacity (Wh) | AC output power (W) | AC output voltage&Frequency | Output Waveform | DC output | USB Output |
Dimension (L*W*H mm) | Weight Approx. |
| SES-AS600-NCM | 25.2 | 1000 | 600@Peak 1200 | 220 AC @50 HZ | Pure Sin Wave | 12V holder*1 24V holder*1 12V head*1 | USB 2.0/ QC3.0/Type C | 360*215*300 | 9.5 |
| SES-AS1500-NCM | 25.2 | 1500 | 1500@Peak 3000 | 220 AC @50 HZ | Pure Sin Wave | 12V holder*1 24V holder*1 12V head*1 | USB 2.0/ QC3.0/Type C | 360*215*300 | 12.8 |
| SES-AM500-LFP | 12.8 | 500 | 500@Peak 1000 | 220 AC @50 HZ | Pure Sin Wave | 12V holder*1 12V head*1 | USB 2.0/ QC3.0/Type C | 330*200*196 | 8.6 |
| SES-AM1000-LFP | 12.8 | 1000 | 1000@Peak 2000 | 220 AC @50 HZ | Pure Sin Wave | 12V holder*1 12V head*1 | USB 2.0/ QC3.0/Type C | 330*200*300 | 14.6 |
2)SES Power's Toys Battery Model List
If you are interested in a model, please click on the corresponding name in MODEL NO.
3)SES Power's Flashlight Battery Model List
If you are interested in a model, please click on the corresponding name in MODEL NO.
| Model No | Nominal Voltage (V) | Nominal Capacity (Ah) | Max. Charge Current (A) | Max. Discharge Current (A) | Discharge Cut-off Voltage (V) | Discharge Temp. Range (℃) | Dimensions (H*W*L mm) | Weight (g) | Internal Resistance (mΩ) |
| FLB-INR3.7V-2.2Ah-01 | 3.7 | 2.2 | 2 | 2 | 2.7 | -20-+60 | Φ18.5*71 | 58 | 120 |
| FLB-INR3.7V-2.5Ah-01 | 3.7 | 2.5 | 2 | 2 | 2.7 | -20-+60 | Φ18.5*71 | 60 | 120 |
| FLB-INR3.7V-5Ah-01 | 3.7 | 5 | 2 | 2 | 2.7 | -20-+60 | Φ26.5*71 | 110 | 120 |
4)SES Power's Consumer Electronics Model List
If you are interested in a model, please click on the corresponding name in MODEL NO.
