GENERAL
		Nominal Voltage	12.8 V
		Nominal Capacity	30 Ah
		Capacity @ 5A	300 min
		Energy	384Wh
		Resistance	≤15 mΩ @ 50% SOC
		Self-discharge	<3% / Month
		Protocol	NA
CHARGE		MECHANICAL
Recommended Charge Current	15A	Dimension (L x W x H)	181*76*167 mm  7.1” x3.0” x6.6”
Max. Charge Current	30 A	Approx. Weight	8.2 lbs (approx. 3.7 kg)
Recommended Charge Voltage	14.4 V	Terminal Type & Layout	M6 &  Layout  B
BMS Charge Cut-Off Voltage	<14.6 V (3.65V/Cell)	Terminal Torque	80~100 in-lbs (9~11N-m)
Reconnect Voltage	>14.2 V (3.55V/Cell)	Case Material	ABS
Balancing Voltage	<14.1 V (3.525V/Cell)	Enclosure Protection	IP65
Maximum Batteries in Series	4	TEMPERATURE
DISCHARGE		Discharge Temperature	-4 ~ 140 ºF (-20 ~ 60 ºC)
Max. Cont. Discharge Current	75 A	Charge Temperature	32 ~ 113 ºF (0 ~ 45 ºC)
Peak Discharge Current	90 A (5s)	Storage Temperature	23 ~ 95 ºF (-5 ~ 35 ºC)
BMS Discharge Cut-Off Current	130A ±30A (50~150ms)	BMS High Temperature Cut-Off	167 ºF (75 ºC)
Recommended Cut-off Voltage	>9.2 V (2.3V/Cell)	Reconnect Temperature	149 ºF (65 ºC)
BMS Discharge Cut-Off Voltage	>8.0V (2s)  (2.0V/Cell)	COMPLIANCE
Reconnect Voltage	>10.8 V (2.7V/Cell)	Certifications	CE/UN38.3 (battery) UL1642/IEC62133 (cells)
Short Circuit Protection	450 ~ 800 μs	Shipping Classification	UN 3480, CLASS 9

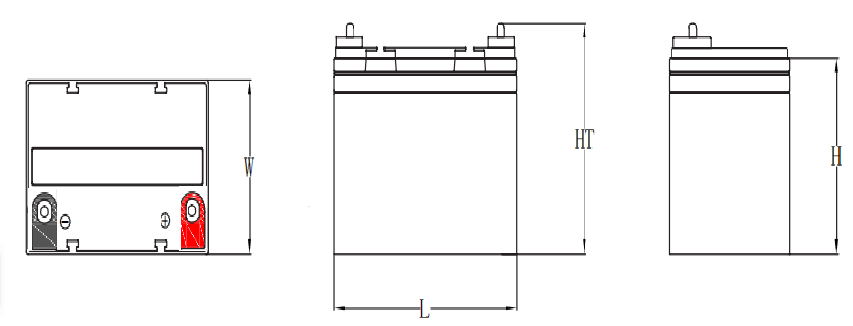

Outline Dimension

Terminal Details

Performance Characteristics

Battery Comparisons

This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.

All calculations are based on cycling to 50% capacity retention for fair comparisons.

Efficiency	5.0	5.0	3.0	3.0	3.0
Longevity	5.0	3.0	3.0	1.0	1.0
Cost Per Lifetime KWH	5.0	3.5	4.3	3.0	1.5
Safety	5.0	4.0	4.8	4.5	4.8
Voltage Stability	4.8	4.5	3.5	3.0	3.0
Charge Speed	4.0	5.0	1.5	1.0	1.0

FEATURES & BENEFITS

High cycle life:

More than 4000 cycles @50% DoD for effectively lower total cost of ownership.

Longer service life:

Low maintenance batteries with stable chemistry.

Built in circuit protection:

Battery Management System (BMS) is incorporated against abuse.

Better storage:

Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.

Quickly recharge:

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance:

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight:

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:

    •Caravan

    •Marine

    •Golf Car

    •Buggies

    •Solar Storage

    •Remote Monitoring

    •Switching applications and more

CAUTIONS

    •Do NOT short circuit, reverse polarity, crush or disassemble.

    •Do NOT heat or incinerate.

    •Do NOT immerse in any liquid.

    •Only use LiFePO4 charger

    •Store at 30~50% SOC. Recharging every 3 months is recommended.

    •The storage area should be clean, cool, dry and ventilated.

Mountings

	Mechanical info			Mechanical info
	D1	16mm		L1	20.5mm
	D2	14mm		L2	15.5mm
	h1	36mm		Screw	M8
	h2	26mm		Material	Copper
	h3	10mm		Weight	16g
	Screw	M8
	Material	Copper
	Weight	61g
