GENERAL
		Nominal Voltage	25.6V
		Nominal Capacity	35Ah
		Capacity @ 7A	300 min
		Energy	896Wh
		Resistance	≤100 mΩ @ 50% SOC
		Cell Type	IFR26650HL
		Series & Parallel	8S10P
Parameter		MECHANICAL
Recommended Charge Current	18A	Dimension (H x W x L)	200*120*240 mm
Max. Charge Current	35A	Approx. Weight	approx. 9.5kg
Recommended Charge Voltage	28.8V (3.60V/Cell)	Connector	Optional
Recommended Discharge Current	18A	Case Material	Iron + Paint
Max. Discharge Current	35A	Enclosure Protection	IP53(Optional)
Recommended Discharge Voltage	21.6V
BMS Charge Cut-Off Voltage	31.2V (1s)  (3.90V/Cell)	TEMPERATURE
BMS Discharge Cut-Off Voltage	18.4V (1s)  (2.30V/Cell)	Discharge Temperature	-76~176 ºF (-60 ~80 ºC)
BMS Discharge Cut-Off Current	80A ~150 A (50~150ms)	Charge Temperature	-22~ 140 ºF (-30 ~ 60 ºC)
BMS Communication Protocol	Optional	Storage Temperature	23 ~ 95 ºF (-5 ~ 35 ºC)
Support Parameter Adjust	Optional	COMPLIANCE
Cellphone App	Optional	Certifications	UL1642/IEC62133 (cells)
Monitor	Available	Shipping Classification	UN 3480

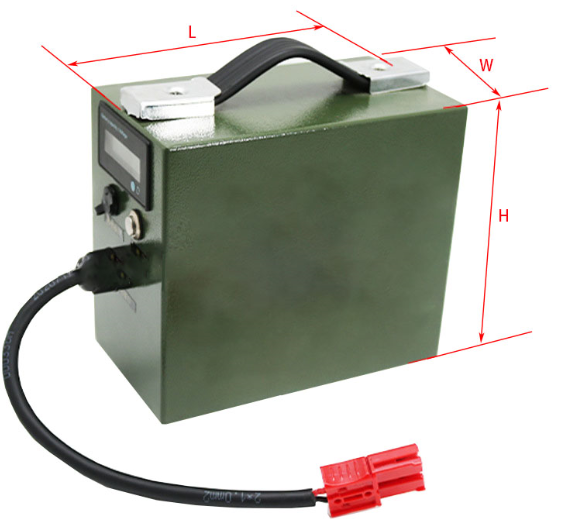

Outline Dimension

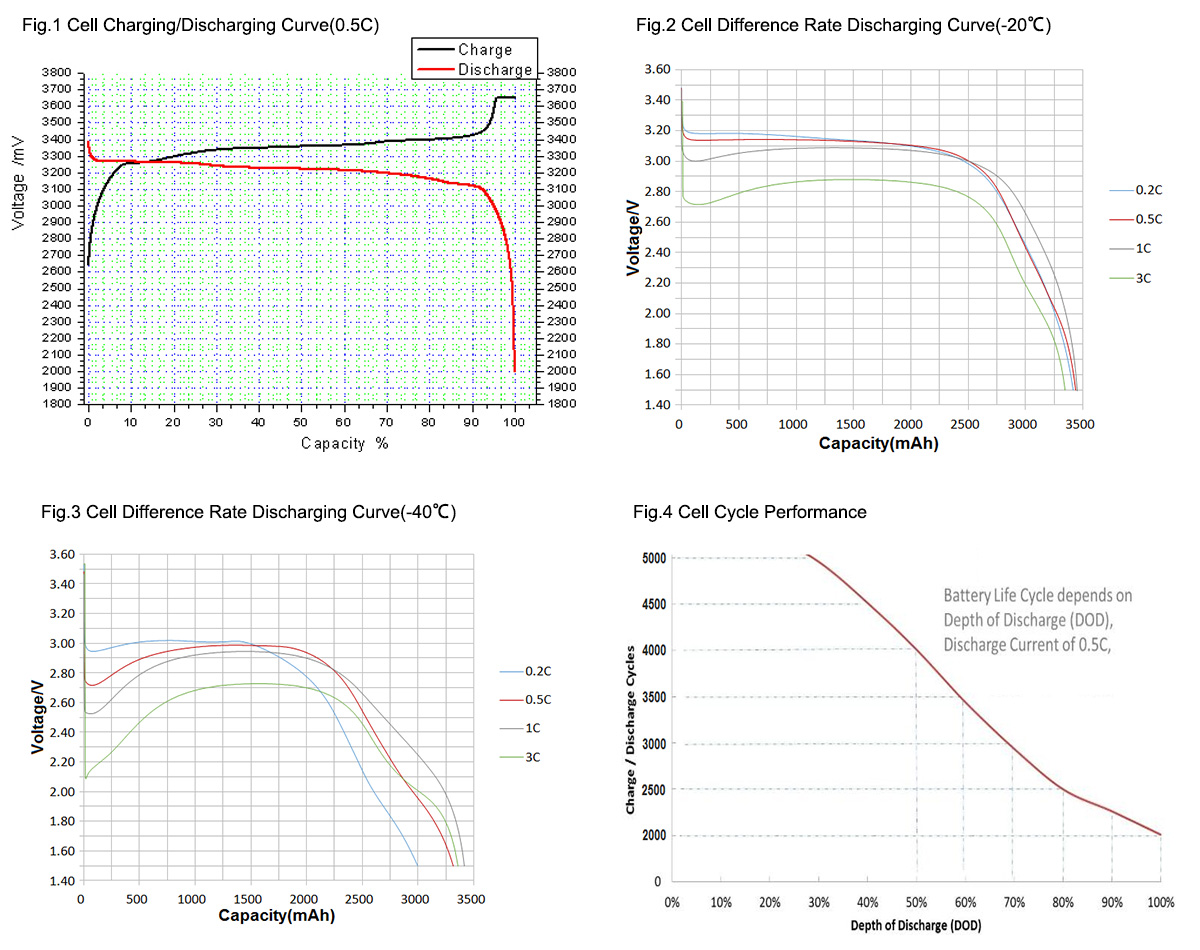

Performance Characteristics

Battery Comparisons

This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.

All calculations are based on cycling to 50% capacity retention for fair comparisons.

Efficiency	5.0	5.0	3.0	3.0	3.0
Longevity	5.0	3.0	3.0	1.0	1.0
Cost Per Lifetime KWH	5.0	3.5	4.3	3.0	1.5
Safety	5.0	4.0	4.8	4.5	4.8
Voltage Stability	4.8	4.5	3.5	3.0	3.0
Charge Speed	4.0	5.0	1.5	1.0	1.0

FEATURES & BENEFITS

High cycle life:

More than 4000 cycles @50% DOD for effectively lower total cost of ownership.

Longer service life:

Low maintenance batteries with stable chemistry.

Built in circuit protection:

Battery Management System (BMS) is incorporated against abuse.

Better storage:

Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.

Quickly recharge:

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance:

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight:

Lithium batteries provide more Wh/Kg.

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Lead Acid, Ni-Mh or Ni-Cd type batteries.

Suitable applications include:

    •Military Equipment

    •Military Backup Power

    •Field Emergency Equipment

    •Industrial Equipment

    •High Temprature Energy Supply

    •Low Temprature Energy Supply

    •Any Application where discharging or charging in low/high temperatures is necessary

CAUTIONS

    •Do NOT short circuit, reverse polarity, crush or disassemble.

    •Do NOT heat or incinerate.

    •Do NOT immerse in any liquid.

    •Only use LiFePO4 charger

    •Store at 30~50% SOC. Recharging every 3 months is recommended.

    •The storage area should be clean, cool, dry and ventilated.
