 | GENERAL |
| Nominal Voltage | 14.8V |
| Nominal Capacity | 10Ah |
| Capacity @ 2A | 300 min |
| Energy | 148Wh |
| Resistance | ≤120 mΩ @ 50% SOC |
| Cell Type | INR18650E |
| Series & Parallel | 4S4P |
| Parameter | MECHANICAL |
| Recommended Charge Current | 5A | Dimension (H x W x L) | 71*80*78 mm |
| Max. Charge Current | 10A | Approx. Weight | approx. 900g |
| Recommended Charge Voltage | 16.8V (4.20V/Cell) | Connector | Optional |
| Recommended Discharge Current | 5A | Case Material | PVC |
| Max. Discharge Current | 10A | Enclosure Protection | IP54 |
| Recommended Discharge Voltage | 12.0V |
|
| BMS Charge Cut-Off Voltage | 17.2V (1s) (4.30V/Cell) | TEMPERATURE |
| BMS Discharge Cut-Off Voltage | 10.8V (1s) (2.70V/Cell) | Discharge Temperature | -40~140 ºF (-40 ~60 ºC) |
| BMS Discharge Cut-Off Current | 20A ~40A (50~150ms) | Charge Temperature | -4 ~ 113 ºF (-20 ~ 45 ºC) |
| BMS Communication Protocol | Not Available | Storage Temperature | 23 ~ 95 ºF (-5 ~ 35 ºC) |
| Support Parameter Adjust | Not Available | COMPLIANCE |
| Cellphone App | Not Available | Certifications | UL1642/IEC62133 (cells) |
| Monitor | Not Available | Shipping Classification | UN 3480 |

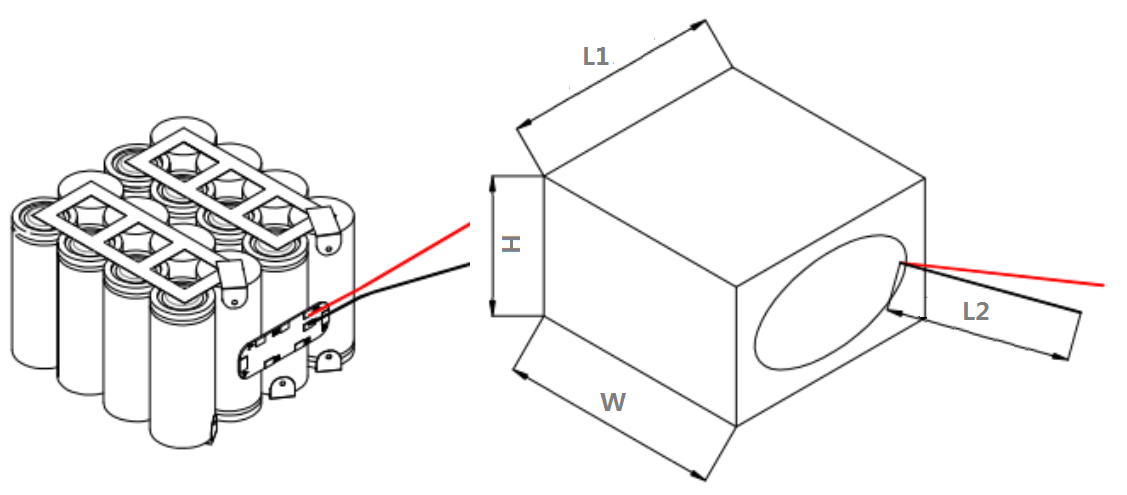

Outline Dimension
| H | W | L1 | L2 |
| 71±3mm | 80±3mm | 78±3mm | Customizable |

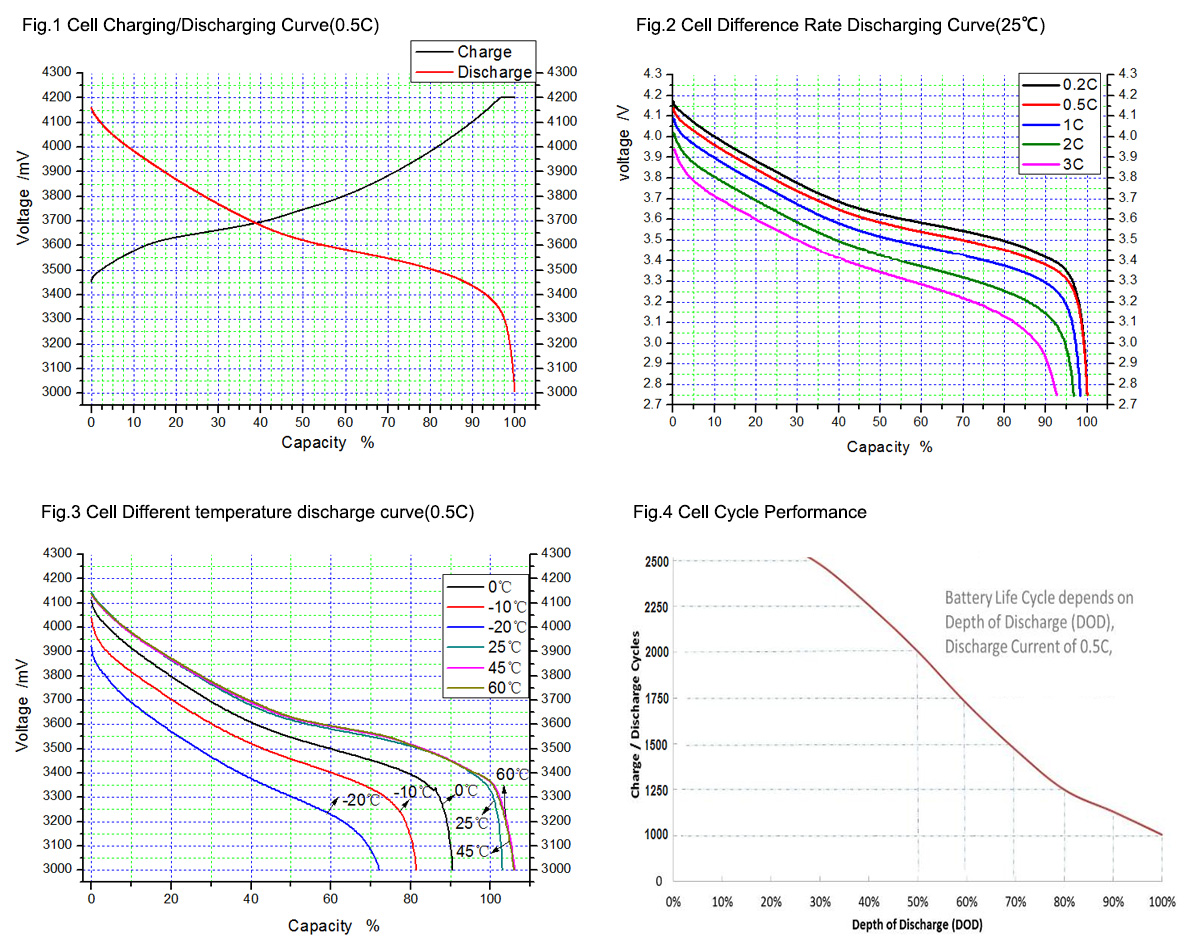

Performance Characteristics
Battery Comparisons
This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.
All calculations are based on cycling to 50% capacity retention for fair comparisons.
|  |  |  |  |  |
| Efficiency | 5.0 | 5.0 | 3.0
| 3.0
| 3.0 |
| Longevity | 5.0 | 3.0 | 3.0 | 1.0 | 1.0 |
| Cost Per Lifetime KWH | 5.0 | 3.5 | 4.3 | 3.0 | 1.5 |
| Safety | 5.0 | 4.0 | 4.8 | 4.5 | 4.8 |
| Voltage Stability | 4.8 | 4.5 | 3.5 | 3.0 | 3.0 |
| Charge Speed | 4.0 | 5.0 | 1.5 | 1.0 | 1.0 |
FEATURES & BENEFITS
High cycle life:
More than 2000 cycles @50% DOD for effectively lower total cost of ownership.
Longer service life:
Low maintenance batteries with stable chemistry.
Built in circuit protection:
Battery Management System (BMS) is incorporated against abuse.
Better storage:
Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.
Quickly recharge:
Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.
Extreme heat tolerance:
Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.
Lightweight:
Lithium batteries provide more Wh/Kg.
APPLICATIONS
Lithium Ion battery can be used in most applications that use Lead Acid, Ni-Mh or Ni-CD type batteries.
Suitable applications include:
•Robot/AI
•Handheld Device
•Photographic Equiment
•Industrial Equipment
•E-Tool/E-Toy/Motor
•Monitoring Equipment
•Consumer Electronics Product
CAUTIONS
•Do NOT short circuit, reverse polarity, crush or disassemble.
•Do NOT heat or incinerate.
•Do NOT immerse in any liquid.
•Only use Lithium-ion charger
•Store at 30~50% SOC. Recharging every 3 months is recommended.
•The storage area should be clean, cool, dry and ventilated.
