GENERAL
		Nominal Voltage	3.2 V
		Nominal Capacity	3000mAh@0.2C
		Minimum Capacity	2950mAh@0.2C
		Energy	9.6Wh
		Resistance	≤9 mΩ @ 50% SOC
		Self-discharge	<3% / Month
		Cycle Life@0.5C	2000 Cycle
CHARGE		MECHANICAL
Std. Charge Current	0.5C	Dimension (D x H)	26*65 mm
Max. Charge Current	3C@T>0 ºC	Approx. Weight	approx. 85 g
Max. Charge Current	0.5C@-20 ~ 0 ºC	Case Material	Steel
Max. Charge Current	0.2C@＜-20 ºC	Welding Mode	DC Spot Welding
Max. Peak Charge Current	5C@>0 ℃@60Sec	Welding Materials	Nickel Strap
Recommended Charge Voltage	3.60V	Swell Coefficient	0
Recommended Cut-Off  Voltage	3.65V~3.90 V	TEMPERATURE
DISCHARGE		Discharge Temperature	-58~140 ºF (-50 ~ 60 ºC)
Std. Discharge Current	1C	Charge Temperature	-22~140 ºF (-30 ~ 60 ºC)
Max. Discharge Current	10C@T>-20 ºC	Storage Temp.(One Month)	-4~ 113 ºF (-20 ~ 45 ºC)
Max. Peak Discharge Current	7C@-40~ -20 ºC	Storage Temp.(One Year)	32 ~ 95 ºF (0~ 35 ºC)
Recommended Discharge Voltage	2.20V@>0 ºC	Storage Humidity	＜70%
Recommended Cut-Off  Voltage	2.00V@-20 ~ 0 ºC	COMPLIANCE
Recommended Cut-Off  Voltage	1.50V@＜-20 ºC	Certifications	UL1642/IEC62133
Discharge Cap./Nominal Cap	>90%@-40 ºC	Shipping Classification	UN 3480, CLASS 9

Outline Dimension

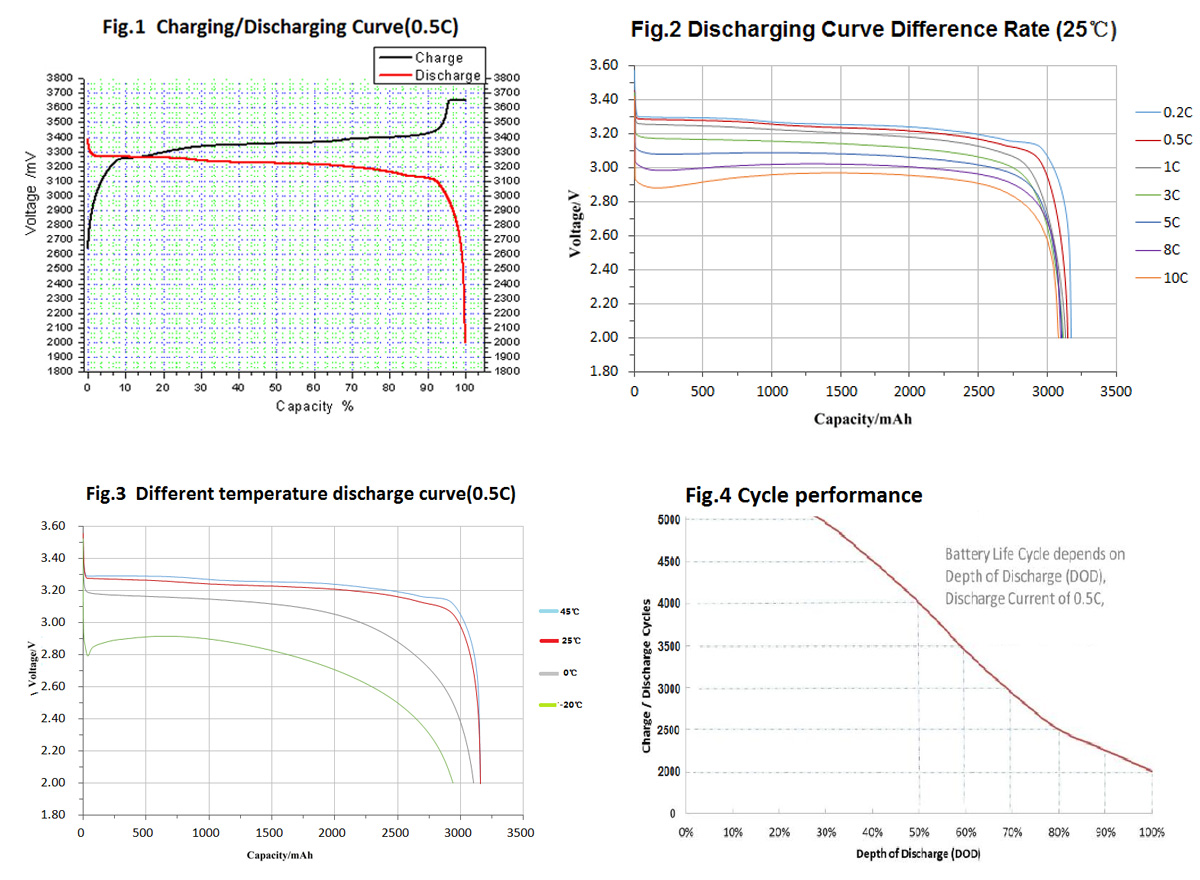

Performance Characteristics

Battery Comparisons

This simple, yet thorough comparison of different battery types allows you to see at a glance which battery presents the best value.

All calculations are based on cycling to 50% capacity retention for fair comparisons.

Efficiency	5.0	5.0	3.0	3.0	3.0
Longevity	5.0	3.0	3.0	1.0	1.0
Cost Per Lifetime KWH	5.0	3.5	4.3	3.0	1.5
Safety	5.0	4.0	4.8	4.5	4.8
Voltage Stability	4.8	4.5	3.5	3.0	3.0
Charge Speed	4.0	5.0	1.5	1.0	1.0

FEATURES & BENEFITS

High cycle life:

More than 4000 cycles @50% DoD for effectively lower total cost of ownership.

Longer service life:

Low maintenance batteries with stable chemistry.

Built in circuit protection:

Battery Management System (BMS) is incorporated against abuse.

Better storage:

Up to 6 months thanks to its extremely low self-discharge (LSD)rate and no risk of sulphation.

Quickly recharge:

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

Extreme heat tolerance:

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

Lightweight:

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.

APPLICATIONS

Lithium Iron Phosphate can be used in most applications that use Ni-MH Ni-Cd , Dry Cell ,Alkaline Cell , Lead Acid, GEL or AGM type batteries.

Suitable applications include:

    •Consume Electronics

    •E-Tool

    •E-Mobility

    •Industrial Equipment

    •Solar Storage

    •Remote Monitoring

    •Backup Power

CAUTIONS

    •Do NOT short circuit, reverse polarity, crush or disassemble.

    •Do NOT heat or incinerate.

    •Do NOT immerse in any liquid.

    •Only use LiFePO4 charger

    •Store at 30~50% SOC. Recharging every 3 months is recommended.

    •The storage area should be clean, cool, dry and ventilated.

SES Power's Cell List

        Cell is the key component in battery pack so that SES Power will use NMC/LiFepO4 cells from CATL, EVE, BYD, BAK, LG, Samsung, Panasonic or first class manufacturer in China to offer customer battery solution for your needed.

        1)SES Power's INR Cylindrical Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

        2)SES Power's IFR Cylindrical Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

       3)SES Power's LFP Aluminum Shell Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

       4)SES Power's LFP Polymer Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.
