SES Power's Energy Storage System

Use renewable energy at everywhere –SES Power's energy storage solutions makes it possible. Energy storage solutions with an integrated safety concept offer highly efficient and flexible energy storage at anywhere for private and commercial applications.

Cell is the key component in battery pack so that SES Power will use NMC/LiFepO4 cells from CATL,EVE,BYD,BAK, LG ,Samsung, Panasonic or first class manufacturer in China to offer customer battery solution for your needed.

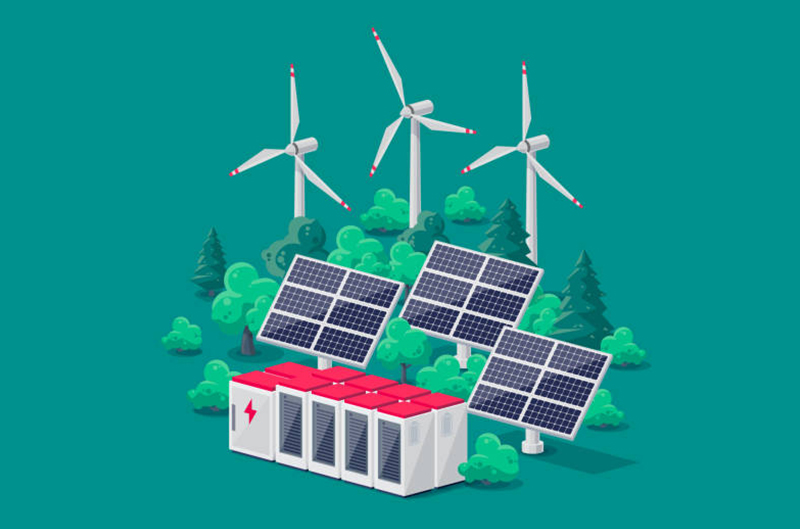

With the lithium-ion energy storage modules, the generated photovoltaic energy and grid excess energy can be stored in battery modules and easily be made available at a later time. Surplus energy is no longer lost.

With SES Power's ESS energy storage system, energy users become less dependent on electricity prices and can use their own eco-power whenever they need it.

You can find SES Power technology in many applications, including:

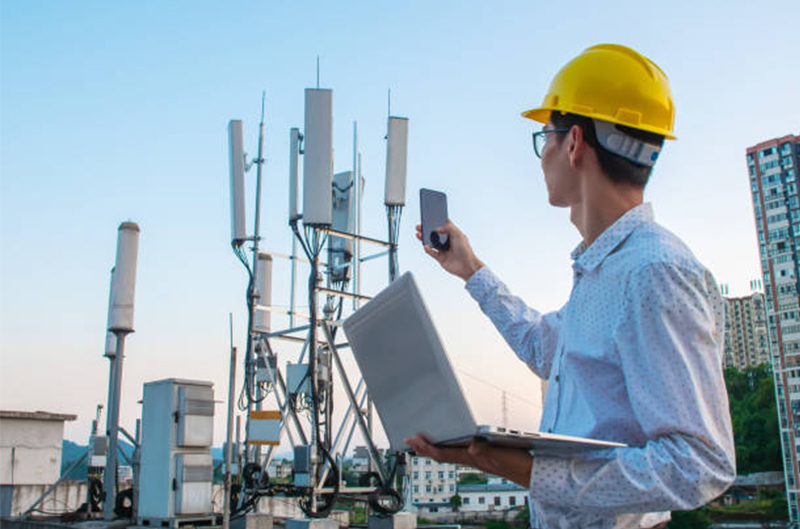

1)SES Telecom Base Battery Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temperature Range (℃)	Dimensions (HWL mm)	Weight (Kg)	Cycle Life @ 50% SOC
TBB-19U-48100-5U-16S	51.2	100	50	100	40	-20-+60	19”-5U 420482222mm	45	8000
TBB-19U-48100-5U-15S	48	100	50	100	37.5	-20-+60	19”-5U 420482222mm	42	8000
TBB-19U-4850-3U-16S	51.2	50	30	50	40	-20-+60	19”-3U 420482133mm	23	8000
TBB-19U-4850-5U-15S	48	50	30	50	37.5	-20-+60	19”-3U 420482133mm	21.6	8000

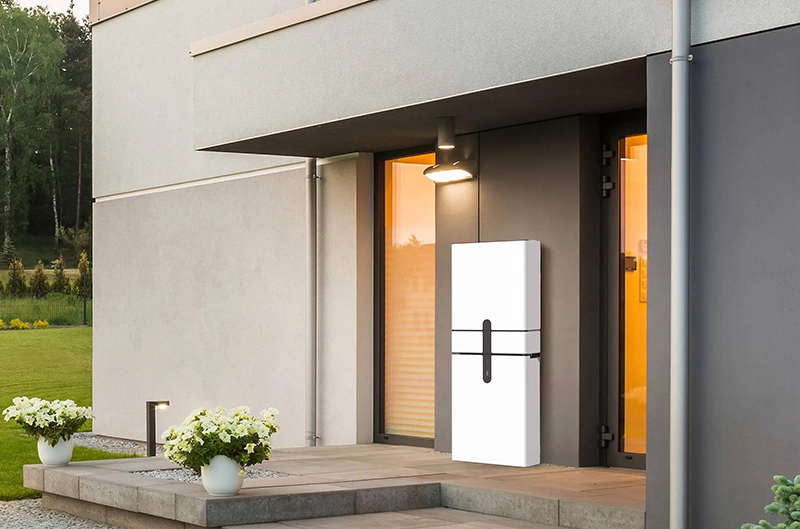

2)SES Power's Household ESS Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temperature Range (℃)	Dimensions (HWL mm)	Weight (Kg)	Internal Resistance (mΩ)
HESS-IFR51.2V-200Ah-01	51.2	200	200	200	36.8	-20-+60	160880435	88	25
HESS-IFR51.2V-200Ah-02	51.2	200	200	200	36.8	-20-+60	315500515	92	25
HESS-IFR51.2V-100Ah-01	51.2	100	100	100	36.8	-20-+60	220420482	45	30
HESS-IFR48V-200Ah-01	48	200	200	200	34.5	-20-+60	160880435	84	25
HESS-IFR48V-200Ah-02	40	200	100	100	24.5	-20-+60	220380520	84	25
HESS-IFR48V-100Ah-01	48	100	100	100	34.5	-20-+60	220420482	42	30
HESS-IFR48V-100Ah-02	48	200	200	200	34.5	-20-+60	210450550	43	30
HESS-IFR24V-100Ah-01	48	100	100	100	18.4	-20-+60	133442520	24	30

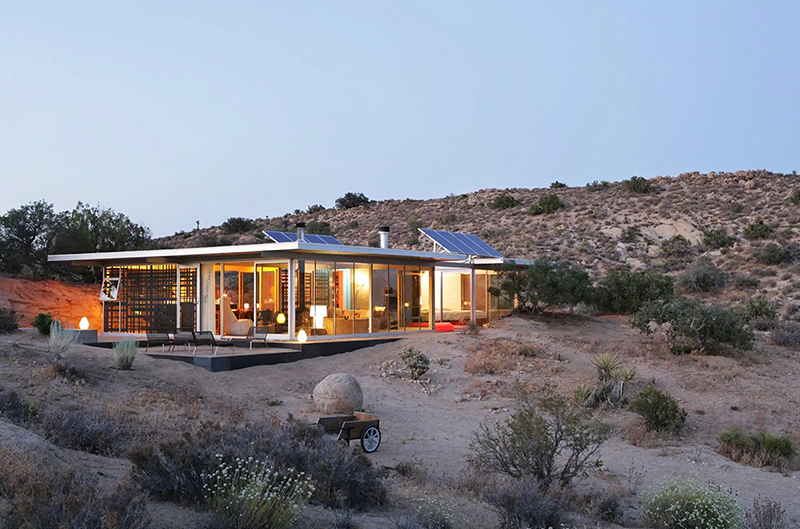

3)SES Power's Off-Grid ESS Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temperature Range (℃)	Dimensions (HWL mm)	Weight (Kg)	Internal Resistance (mΩ)
FESS-IFR96V-200Ah-01	96	200	100	100(Peak200A@5S)	69	-20-+60	4005601150	172	30
FESS-IFR51.2V-200Ah-01	51.2	200	100	200	36.8	-20-+60	180350820	90	25
FESS-IFR48V-200Ah-01	48	200	100	100(Peak200A@5S)	34.5	-20-+60	315500515	88	25
FESS-IFR48V-160Ah-01	48	160	100	100	34.5	-20-+60	280400520	69	30
FESS-IFR36V-100Ah-01	38.4	100	100	100	27.6	-20-+60	250260350	35	30
FESS-IFR24V-100Ah-01	25.6	100	100	100	18.4	-20-+60	133442520	24	30
FESS-IFR12V-400Ah-01	12.8	400	200	200	9.2	-20-+60	170350450	47	25
FESS-IFR12V-300Ah-01	12.8	300	200	200	9.2	-20-+60	220260480	36	25
FESS-IFR12V-150Ah-01	12.8	150	100	100	9.2	-20-+60	220230450	19	30

4)SES Power's On-Grid ESS Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No

Nominal Voltage (V)

Nominal Capacity (Ah)

Max. Charge Current (A)

Max. Discharge Current (A)

Discharge Cut-off Voltage (V)

Discharge Temperature Range (℃)

Dimensions

(H*W*L mm)

Weight

(Kg)

Internal Resistance

(mΩ)

OESS-IFR120V400Ah-4H-01

128

400

100

150

-20-+60

260*800*1260

405

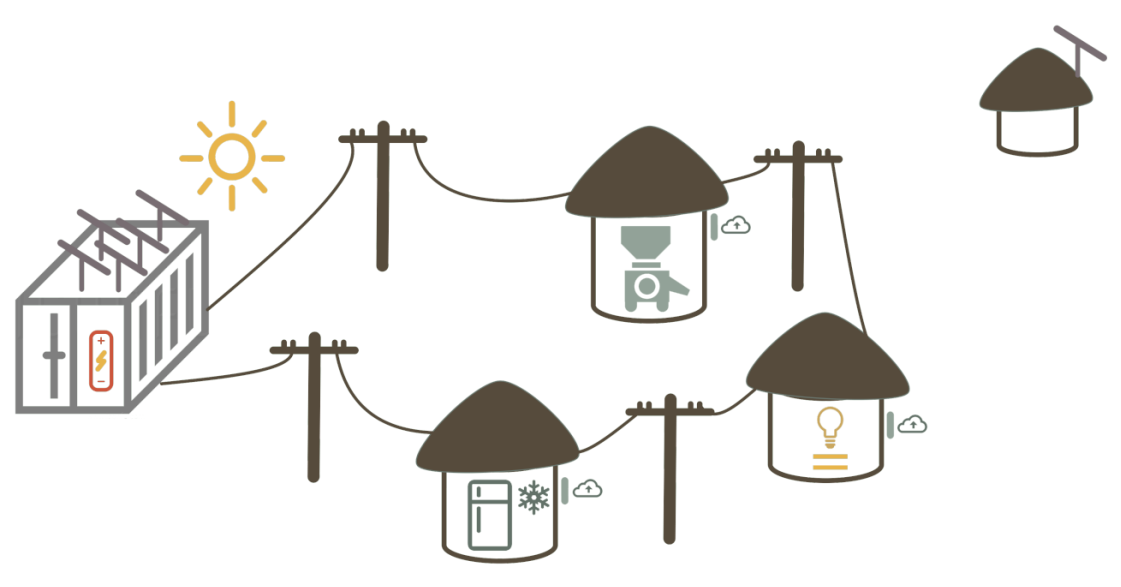

5)SES Power's Micro-Grid System List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No

Battery Rate Voltage (V)

Battery Rate Capacity (Ah)

Batteryoutput Range (V)

AC output power (KW)

AC output voltage

AC output Frequency

AC Output Waveform

Dimension

(L*W*H mm)

Weight Approx.

MESS-AC3KW-BAT5KWh-01

51.2

100

57.6~36.8

220 AC

50 HZ

Pure Sin Wave

300*700*980

MESS-AC5KW-BAT10KWh-01

51.2

100

57.6~36.8

220 AC

50 HZ

Pure Sin Wave

580*700*980

125

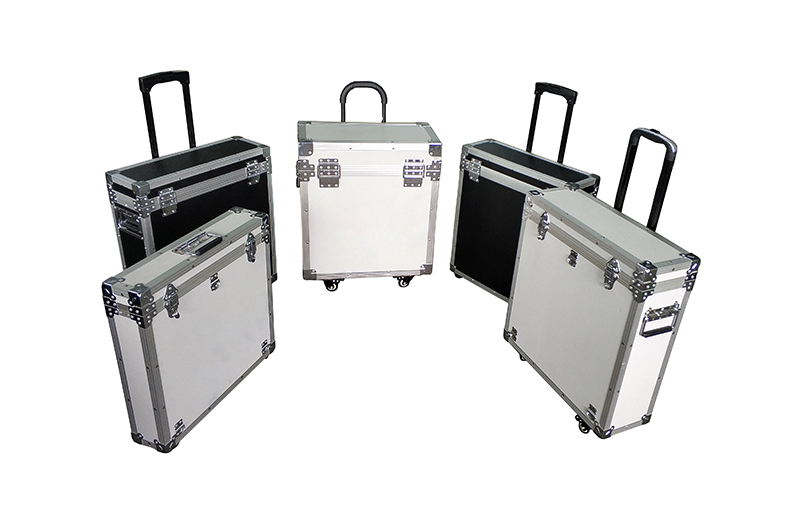

6)SES Power's Outdoor Mobile ESS Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temperature Range (℃)	Dimensions (HWL mm)	Weight (Kg)	Internal Resistance (mΩ)
OMESS-IFR51.2V-100Ah-01	51.2	100	100	100	36.8	-20-+60	180505590	49	35
OMESS-IFR48V-100Ah-01	48	100	100	100	34.5	-20-+60	180505590	47	35
OMESS-IFR36V-100Ah-01	38.4	100	100	100	27.6	-20-+60	165500570	39	35
OMESS-IFR24V-100Ah-01	25.6	100	100	100	36.8	-20-+60	115500500	27	35
