SES POWER Starting Battery Series

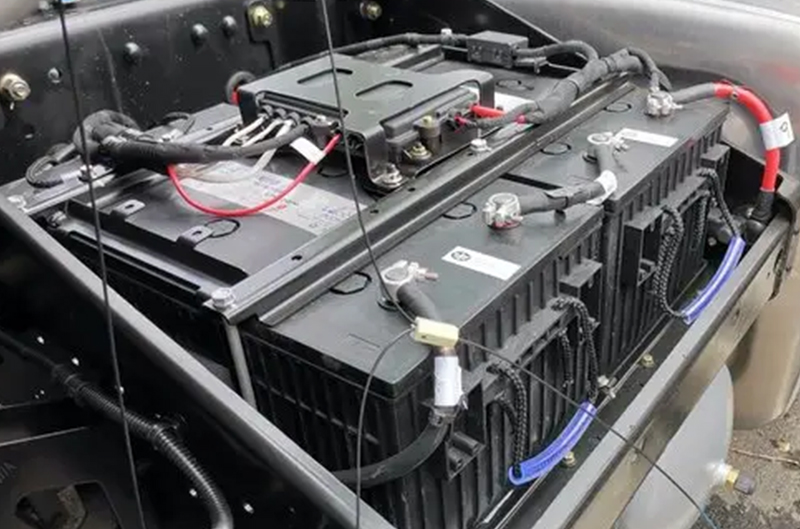

1) "AS" means Automotive Starting Series
LiFePO4 batteries are an ideal replacement for a starting lead acid battery, offering a drop-in solution for lead acid battery replacement. SES Power AS series batteries can be used in automotive starting whit high current(Max. CCA@0℃ 1800A). Of course, you can use a LFP batteries to replace two or three lead acid battery whit same spec ,because LFP batteries have more energy and stronger power.
If you are interested in a model, please click on the corresponding name in MODEL NO.

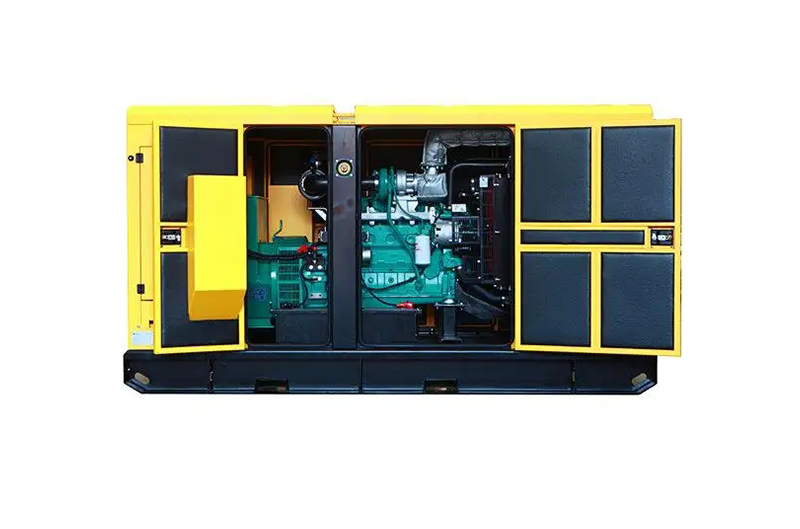

2)"GS" means Generator Starting Series
SES Power GS series LiFePO4 battery is specifically designed for generator. The batteries have higher output power than AS series. At the same specification, GS series batteries just 1/3 size & weight of lead acid, so you can easy to install or replace.
If you are interested in a model, please click on the corresponding name in MODEL NO.
| Model No | Nominal Voltage (V) | Nominal Capacity (Ah) | Max. Charge Current (A) | CCA@0℃ (A) | Terminal Type & Layout | Discharge Temp. Range (℃) | Dimensions (L*W*H mm) | Weight (kg) | Max. in Series |
| HCS-1230-C45-GS | 12.8 | 30 | 30 | 450@10S
| DIN &Layout B | -20-+60 | 238*133*220 | 4.2 | 4 |
| HCS-1250-70D2-GS | 12.8 | 50 | 50 | 750@10S | DIN &Layout B | -20-+60 | 230*175*220 | 7.0 | 4 |
| HCS-1260-5721-GS | 12.8 | 60 | 60 | 900@10S | DIN &Layout B | -20-+60 | 280*175*190 | 8.2 | 4 |
| HCS-1280-C6003-GS | 12.8 | 80 | 80 | 1200@10S | DIN &Layout B | -20-+60 | 355*175*188 | 10.6 | 4 |
| HCS-12100-G31-GS | 12.8 | 100 | 100 | 1500@10S | DIN &Layout B | -20-+60 | 329*172*223 | 14.0 | 4 |
| HCS-2450-C110-GS | 25.6 | 50 | 50 | 750@10S | DIN &Layout B | -20-+60 | 398*175*188 | 13.9 | 2 |
| HCS-24100-G8D-GS | 25.6 | 100 | 100 | 1500@10S | T11 &Layout C | -20-+60 | 520*268*229 | 27.8 | 2 |
3)"MS" means Motor Starting Series
SES Power MS series LiFePO4 battery has high output power for electric motor.It can be replced star type lead acid easy and lighter and more powerful makes it easier to start the electric motor outdoors. Of course our battery is IP65 waterproof.
It can used in any application where discharging with higt current is necessary.
If you are interested in a model, please click on the corresponding name in MODEL NO.
| Model No | Nominal Voltage (V) | Nominal Capacity (Ah) | Max. Charge Current (A) | CCA@0℃ (A) | Terminal Type & Layout | Discharge Temp. Range (℃) | Dimensions (L*W*H mm) | Weight (kg) | Max. in Series |
| HCS-1240-C36-MS | 12.8 | 40 | 40 | 250@5S | DIN &Layout B | -20-+60 | 197*128*220 | 5.6 | 4 |
| HCS-1250-C45-GS | 12.8 | 50 | 50 | 350@5S | DIN &Layout B | -20-+60 | 238*133*220 | 6.5 | 4 |
| HCS-1260-5711-GS | 12.8 | 60 | 60 | 400@5S | DIN &Layout B | -20-+60 | 278*175*175 | 8.0 | 4 |
| HCS-12100-C70-AS | 12.8 | 100 | 100 | 650@5S | DIN &Layout B | -20-+60 | 306*175*220 | 13.2 | 4 |
| HCS-2450-55D2-MS | 25.6 | 50 | 50 | 350@5S | DIN &Layout B | -20-+60 | 230*175*200 | 8.4 | 2 |
| HCS-24100-G8D-MS | 25.6 | 100 | 100
| 650@5S | T11 &Layout C | -20-+60 | 520*268*229 | 27.8 | 2 |
| HCS-24150-G8D-MS | 25.6 | 150 | 150 | 800@5S | T11 &Layout C | -20-+60 | 520*268*229 | 32.0 | 2 |
4) "HP" means High Power Series
SES Power HP series LiFePO4 batteries has very strong output power and replacement for star type lead acid battery, offering a drop-in solution for lead acid battery replacement. HP series batteries can be used individually or connected in series or parallel to create a larger system. The series LiFePO4 battery is fit for E-mobility, Motor star, Energy Storage System, Defense & Security, high power UPS, renewable energy systems, and other harsh environment applications.
If you are interested in a model, please click on the corresponding name in MODEL NO.
5)"HC" means plus Communication
SES Power HC series LiFePO4 batteries has not only strong output power but also built-in bluetooth module(Optional RS485 or Can) that lets you communicate with the battery using our free APP & software for Andriod mobile & computer. You can check the battery capacity or State of Charge (SoC), voltage, temperature, charge or discharge current simply.The HC series is an ideal choice for use in RVs, Motor star,UPS,off-grid solar,marine, renewable energy system, etc.
If you are interested in a model, please click on the corresponding name in MODEL NO.
| Model No | Nominal Voltage (V) | Nominal Capacity (Ah) | Max. Charge Current (A) | Max. Cont. Discharge Current (A) | Terminal Type & Layout | Discharge Temp. Range (℃) | Dimensions (L*W*H mm) | Weight (kg) | Max. in Series |
| DCB-1230-Y26- HC | 12.8 | 30 | 30 | 75 | M6 &Layout B | -20-+60 | 181*76*167 | 3.7 | 4 |
| DCB-1240-Y29- HC | 12.8 | 40 | 40 | 100 | T11 &Layout C | -20-+60 | 174*165*130 | 4.7 | 4 |
| DCB-1250-Y38- HC | 12.8 | 50 | 50 | 120 | T11 &Layout B | -20-+60 | 198*166*170 | 6.0 | 4 |
| DCB-1260-Y38- HC | 12.8 | 60 | 60 | 140 | T11 &Layout B | -20-+60 | 198*166*170 | 6.8 | 4 |
| DCB-1260-Y39- HC | 12.8 | 60 | 60 | 140 | T11 &Layout A | -20-+60 | 230*138*213 | 6.8 | 4 |
| DCB-12100-G31-HC | 12.8 | 100 | 100 | 200 | T11 &Layout A | -20-+60 | 329*172*223 | 11.0 | 4 |
| DCB-2450-G31-HC | 25.6 | 50 | 50 | 120 | T11 &Layout A | -20-+60 | 329*172*223 | 11.0 | 2 |
| DCB-24100-G8D-HC | 25.6 | 100 | 100 | 200 | T11 &Layout C | -20-+60 | 520*242*229 | 21.0 | 2 |
| DCB-24150-G8D-HC | 25.6 | 150 | 150 | 300 | T11 &Layout C | -20-+60 | 520*242*229 | 32.0 | 2 |
| DCB-4850-Y48-HC | 51.2 | 50 | 50 | 120 | T11 &Layout A | -20-+60 | 483*172*242 | 21.0 | 1 |
| DCB-48100-G8D-HC | 51.2 | 100 | 100 | 200 | T11 &Layout C | -20-+60 | 520*242*229 | 42.0 | 1 |
