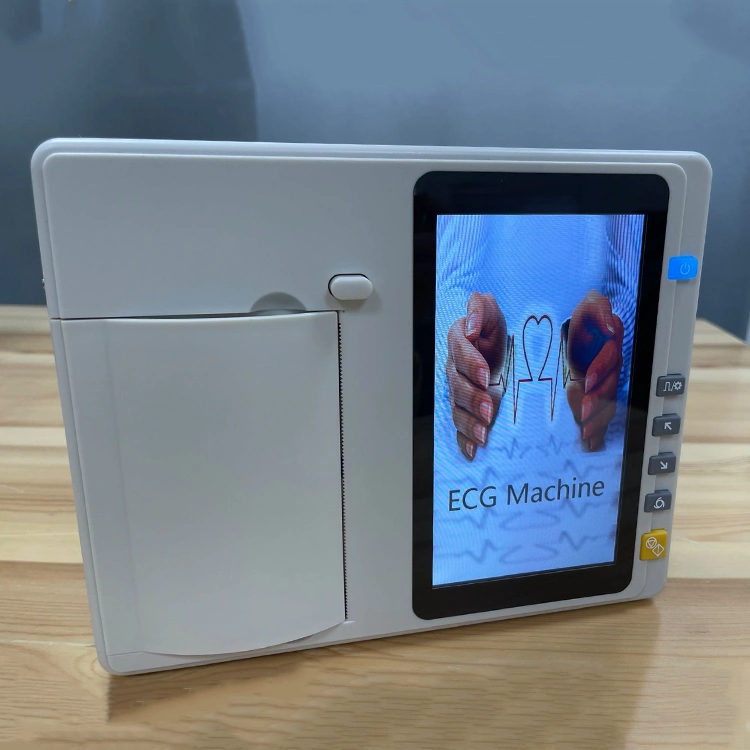

Medical 7inch Touch Screen ECG Hospital 6 Channel ECG Machine with Built-in Printer

APPLICATIONS

Inquiry now

PRODUCT DETAIL

Products Description

Description:
An electrocardiogram (ECG) is a medical test that records the electrical activity of the heart. It provides valuable information about the heart's rhythm and function. The ECG measures the electrical impulses generated by the heart as it beats, and this data is plotted on a graph.

Medical 7inch Touch Screen ECG Hospital 6 channel ECG Machine with Built-in Printer Medical 7inch Touch Screen ECG Hospital 6 channel ECG Machine with Built-in Printer Medical 7inch Touch Screen ECG Hospital 6 channel ECG Machine with Built-in Printer
The main components of an ECG include the P wave, which represents the electrical activation of the atria; the QRS complex, indicating the depolarization of the ventricles; and the T wave, reflecting the repolarization of the ventricles.

Product Features:
1.7 inch high resolution color touch screen.
2. 12-lead simultaneous acquisition and display.
3. ECG Automatic measurement and interpretation function.
4. Complete digital filters, resisting baseline drift, AC and EMG interference.
5. Compact and lightweight design.
6. Support USB flash disk and micro SD card to extend memory.
7. Software upgrade via USB/SD card.
8. Built-in rechargeable Li-ion battery.

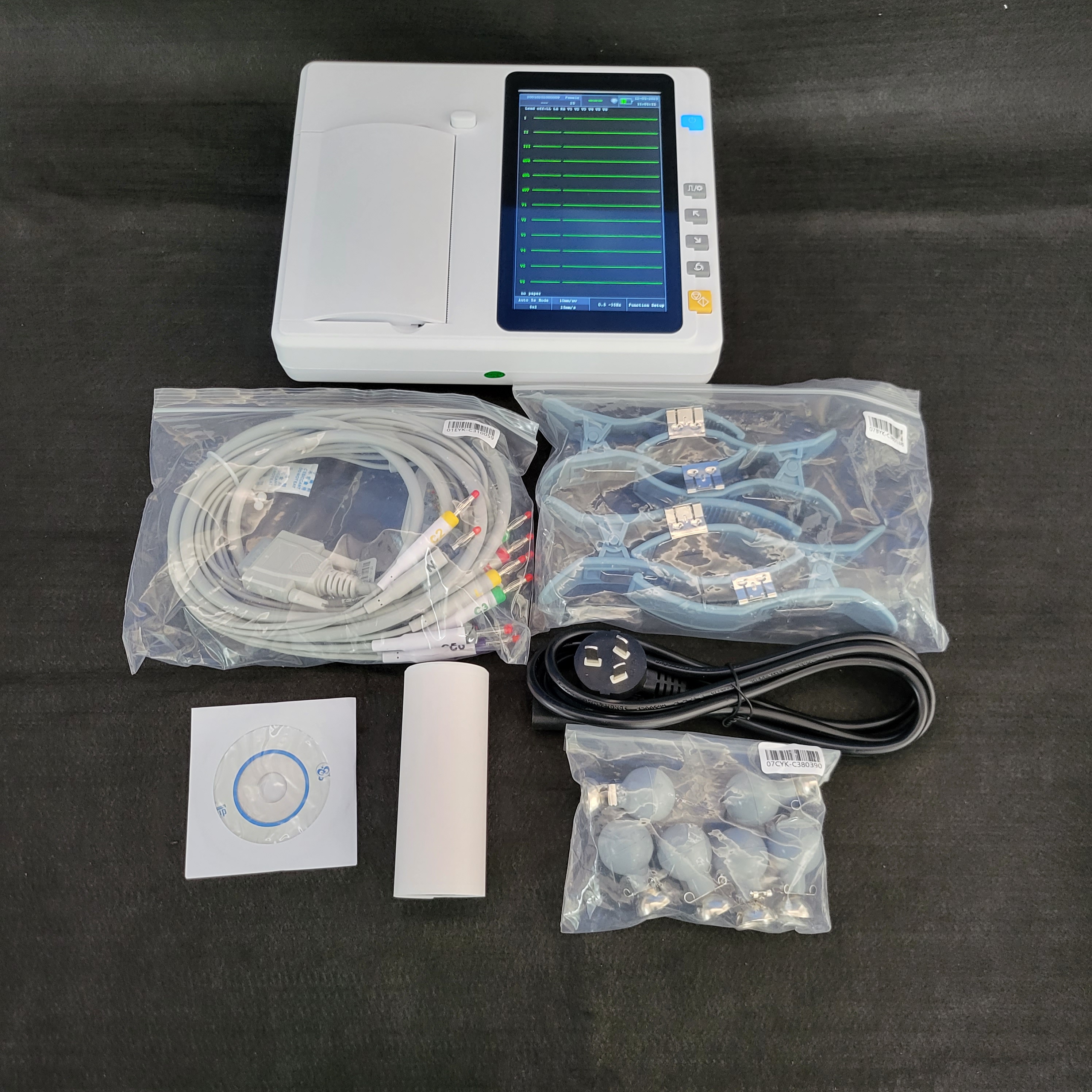

Standard configuration:

(1) Main machine: 1 PC

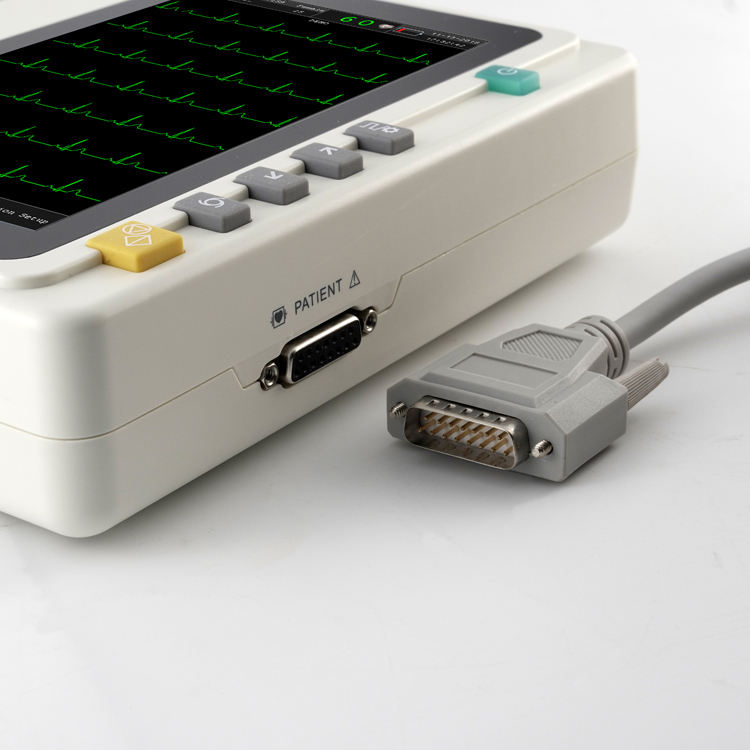

(2) Patient cable: 1 PC
(3) Limb electrode: 1set (4pcs)
(4) Chest electrode: 1set (6pcs)
(5) Power cable: 1 PC
(6) 80mm*20M recording paper: 1PC
(7) Paper axis: 1 PC
(8) Power cord: 1 PC

Parameters:

Lead: Standard 12 leads Acquisition Mode: Simultaneous 12 leads acquisition Measurement Range: ±5mVpp Input circuit: Floating; Protection circuit against Defibrillator effect Input Impedance: ≥50MQ Input circuit current: <0.05μA Record mode: Automatic: CHx4+1R,3CHx4,3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH,2CH,3CH+1R,2CH+1R; Rhythm: Any lead selectable. Filter EMG Filter: 25 Hz/ 30 Hz / 40Hz/75 Hz/ 100 Hz/150Hz DFT Filter: 0.05 Hz/0.15 HzAC Filter: 50 Hz/60Hz

CMRR: >100dB
Patient leak current: <10μA(220V-240V)
Frequency Response: 0.05Hz~150Hz(-3dB)
Sensitivity: 2.5mm/mV, 5 mm/mV, 10 mm/mV,20mm/mV(error:±5%)
Anti-baseline Drift: Automatic
Time constant: ≥3.2s

Specification

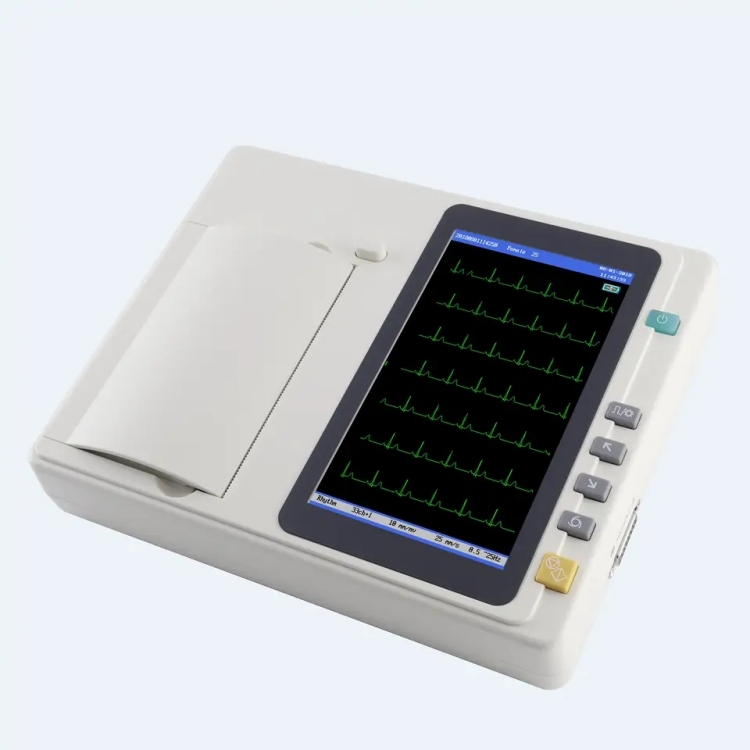

7" High-resolution color LCD touch screen

7 inch high resolution color LCD, operate either by touch screen or function buttons,which is convenient and quick

Portable 7inch ouch Screen ECG Machine 6 channel ECG Machine with Built-in Printer

Optional attachments including ETCO2, touch panel, newborn attachments, etc.

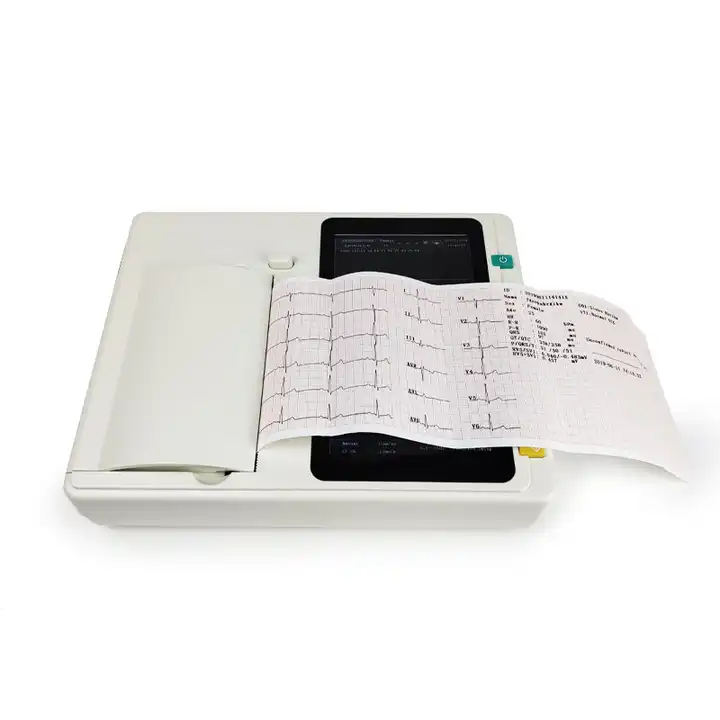

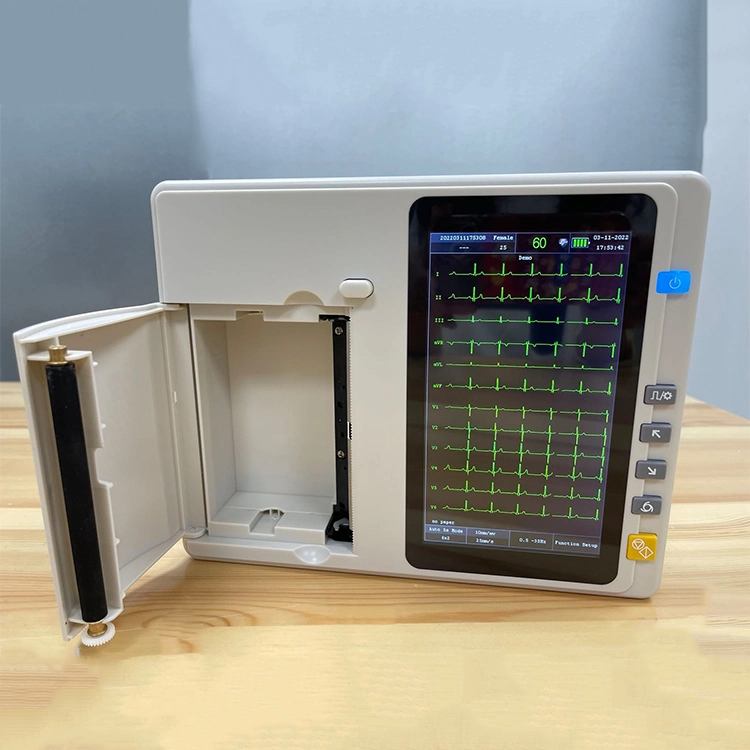

Built-in thermal printer

Support roll paper/folding paper, and external USB devices(keyboard, mouse, scanner, printer), allows USB cable transmission for automatic case upload,report download, and printing.

Portable 7inch ouch Screen ECG Machine 6 channel ECG Machine with Built-in Printer

item	value
single package size	322517cm
gross weight	2.8kg
Electrical Specification	AC：100~240V，50/60Hz,30VA~100VA DC:14.8V/2200mAh , built-in lithium battery
lead	Standard 12 leads
sample rate	Normal: 1000sps/channel
safety standard	IEC I/CF
paper speed	12.5mm/s, 25mm/s, 50mm/s
