SES Power's Cell List

Cell is the key component in battery pack so that SES Power will use NMC/LiFepO4 cells from CATL, EVE, BYD, BAK, LG, Samsung, Panasonic or first class manufacturer in China to offer customer battery solution for your needed.

1)SES Power's INR Cylindrical Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (mAh)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temp. Range (℃)	Dimensions (D*H mm)	Weight (g)	Internal Resistance (mΩ)
INR10440E	3.7	320	0.32	0.96	2.75V	-20-+60	Φ10.3*44.0	10.5	120
INR10440JE	3.7	320	0.32	0.96	2.75V	-20-+60	Φ10.3*44.0	10.5	120
INR14500E	3.7	800	0.8	2.4	2.75V	-20-+60	Φ14.2*49.6	20	80
INR14500E	3.7	1200	1.2	3.6	2.75V	-20-+60	Φ14.2*49.6	24	80
INR14500JE	3.7	800	0.8	2.4	2.75V	-20-+60	Φ14.2*50.5	20	80
INR14500JE	3.7	1200	1.2	3.6	2.75V	-20-+60	Φ14.2*50.5	24	80
INR18500E	3.7	1600	1.6	4.8	2.75V	-20-+60	Φ18.5*50.0	35	70
INR18500E	3.7	2000	2.0	4.0	2.75V	-20-+60	Φ18.5*50.0	42	60
INR18650E	3.7	2200	2.2	6.6	2.75V	-20-+60	Φ18.5*65.3	45	60
INR18650E	3.7	2500	2.5	7.5	2.75V	-20-+60	Φ18.5*65.3	48	60
INR18650E	3.7	3000	3.0	9.0	2.75V	-20-+60	Φ18.5*65.3	52	60
INR26650	3.7	5000	5.0	15.0	2.75V	-20-+60	Φ26.3*65.7	95	20

2)SES Power's IFR Cylindrical Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (mAh)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temp. Range (℃)	Dimensions (D*H mm)	Weight (g)	Internal Resistance (mΩ)
IFR10440E	3.2	200	0.2	0.6	2.0V	-20-+60	Φ10.3*44.0	9.5	120
IFR10440JE	3.2	200	0.2	0.6	2.0V	-20-+60	Φ10.3*44.0	9.5	120
IFR14430E	3.2	500	0.5	1.5	2.0V	-20-+60	Φ14.2*42.5	17	80
IFR14430JE	3.2	500	0.5	1.5	2.0V	-20-+60	Φ14.2*43.5	17	80
IFR14500E	3.2	600	0.6	1.8	2.0V	-20-+60	Φ14.2*49.6	18	60
IFR14500JE	3.2	600	0.6	1.8	2.0V	-20-+60	Φ14.2*50.5	18	60
IFR16340E	3.2	500	0.5	1.5	2.0V	-20-+60	Φ16.5*34.0	18	70
IFR18500E	3.2	1000	1.0	3.0	2.0V	-20-+60	Φ18.5*50.0	30	50
IFR18500JE	3.2	1000	1.0	3.0	2.0V	-20-+60	Φ18.5*50.5	30	50
IFR18650E	3.2	1500	1.5	4.5	2.0V	-20-+60	Φ18.5*65.3	40	40
IFR18650E	3.2	2000	2.0	6.0	2.0V	-20-+60	Φ18.5*65.3	45	40
IFR26650	3.2	3600	3.6	10.8	2.0V	-20-+60	Φ26.3*65.7	87	20
IFR26650	3.2	4000	4.0	12.0	2.0V	-20-+60	Φ26.3*65.7	90	20
IFR26650T	3.2	3200	3.2	9.6	2.0V	-40-+60	Φ26.3*65.7	85	15
IFR26650T	3.2	3400	3.4	10.2	2.0V	-40-+60	Φ26.3*65.7	85	20
IFR26650TP	3.2	3000	3.0	30.0	2.0V	-40-+60	Φ26.3*65.7	85	9
IFR32700	3.2	6000	6.0	18.0	2.0V	-40-+60	Φ32.5*70.5	141	12

3)SES Power's LFP Aluminum Shell Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temp. Range (℃)	Dimensions (LHW mm)	Weight (Kg)	Internal Resistance (mΩ)
LFP14813027	3.2	50	50	60	2.3V	-20-+60	14813027	1.05	2
LFP13518530	3.2	50	50	150	2.3V	-20-+60	13518530	1.40	1
LFP14811928	3.2	52	52	62.4	2.3V	-20-+60	14811928	1.00	0.5
LFP16011850	3.2	100	100	200(Peak)	2.3V	-20-+60	16011850	1.98	0.5
LFP10320137	3.2	105	105	415(Peak)	2.3V	-20-+60	10320137	1.98	0.5
LFP11034634	3.2	154	154	308(Peak)	2.3V	-20-+60	11034634	2.76	0.5
LFP17415454	3.2	160	160	320(Peak)	2.3V	-20-+60	17415454	3.00	0.5
LFP17420754	3.2	206	206	412(Peak)	2.3V	-20-+60	17520754	4.00	0.5
LFP17420754	3.2	230	230	460(Peak)	2.3V	-20-+60	17420754	4.11	0.3
LFP17420772	3.2	280	280	560(Peak)	2.3V	-20-+60	17420772	5.42	0.25

4)SES Power's LFP Polymer Cell Model List

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Discharge Current (A)	Discharge Cut-off Voltage (V)	Discharge Temp. Range (℃)	Dimensions (TWH mm)	Weight (Kg)	Internal Resistance (mΩ)
LFP78133202	3.2	20	20	24	2.3V	-20-+60	7.8133202	0.44	10
LFP79094249	3.2	20	20	24	2.3V	-20-+60	7.994249	0.44	10
LFP81119194	3.2	20	20	24	2.3V	-20-+60	8.1119194	0.44	10
LFP10117169	3.2	20	20	24	2.3V	-20-+60	10117169	0.44	10
LFP93130198	3.2	25	25	30	2.3V	-20-+60	9.3130198	0.55	10
LFP10104501	3.2	26	52	78	2.3V	-20-+60	10104501	0.56	5
LFP14117169	3.2	27	27	33	2.3V	-20-+60	14117169	0.57	8
LFP11133202	3.2	30	25	36	2.3V	-20-+60	11133202	0.58	8

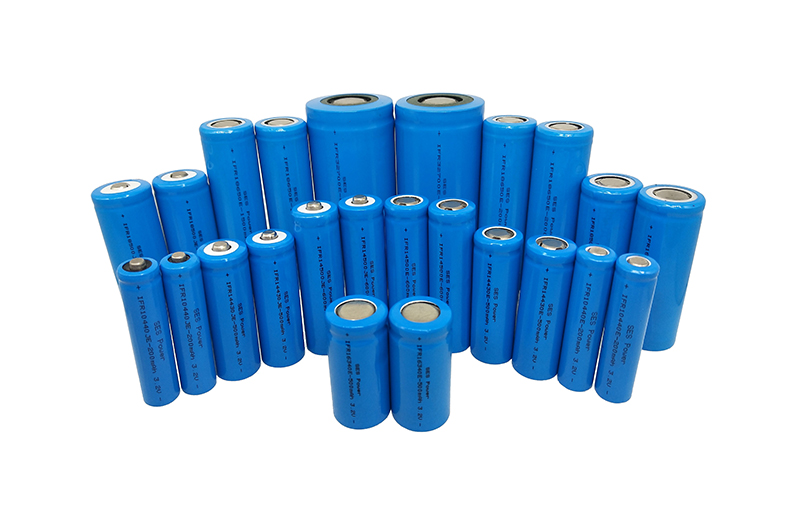

3.2V LiFePo4 Cylindrical Cell

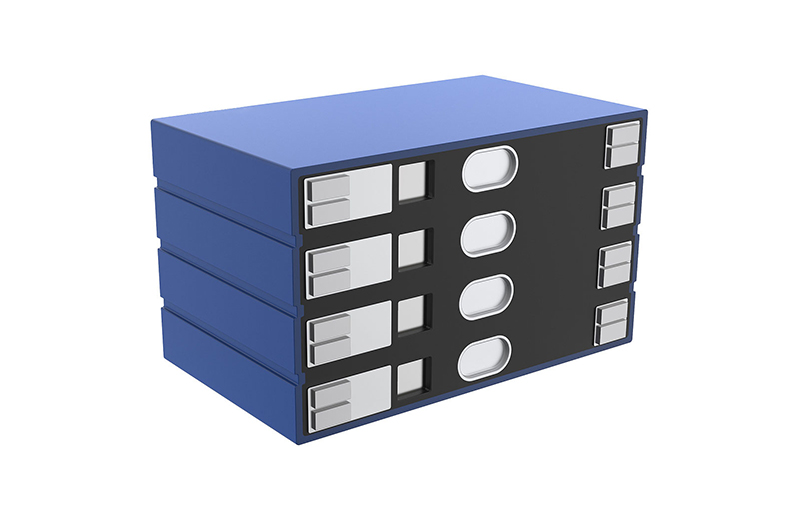

3.2V LiFePo4 Aluminum Shell Cell

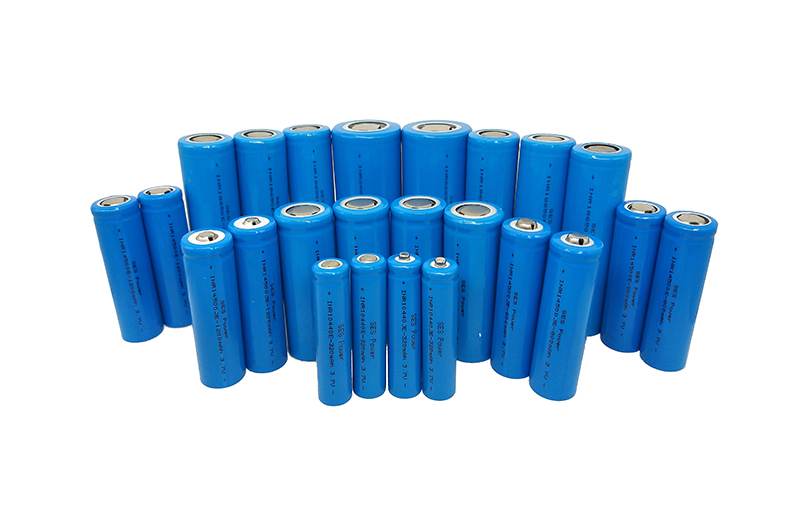

3.7V Li Ion Cylindrical Cell

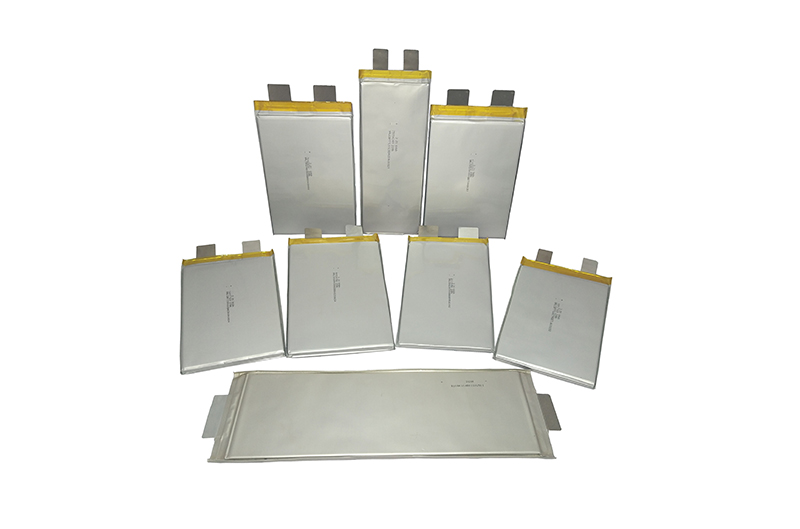

3.2V LiFePo4 Polymer Cell

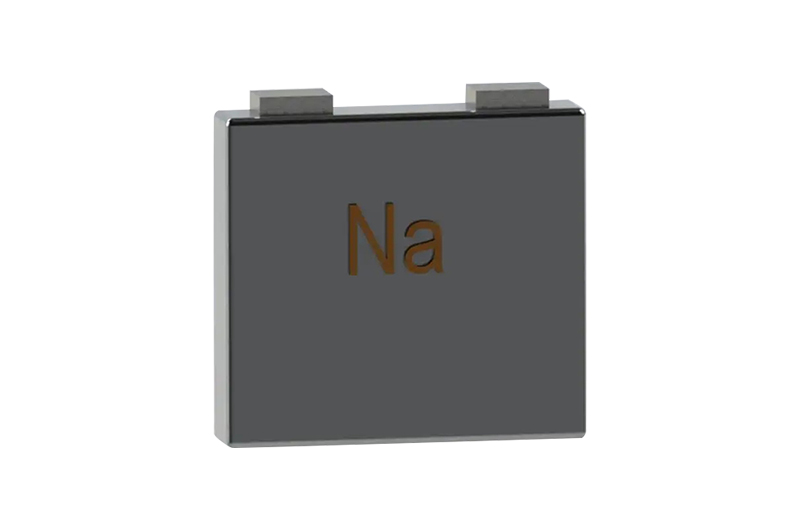

Special Cell
