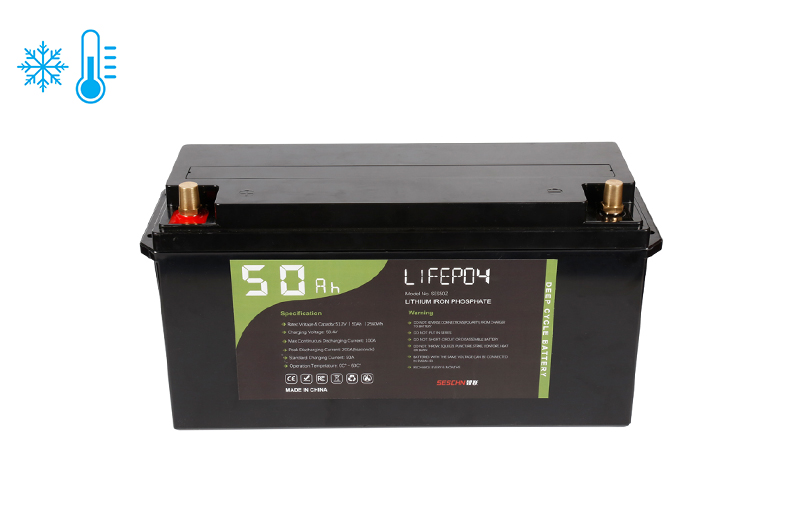

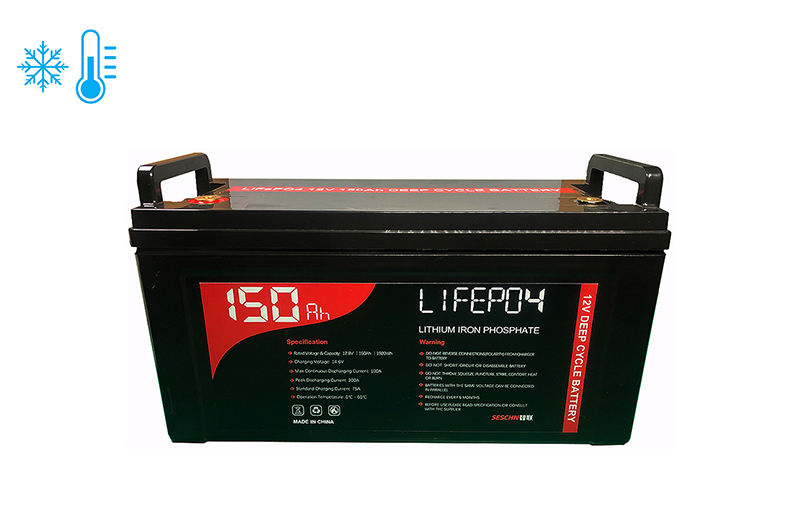

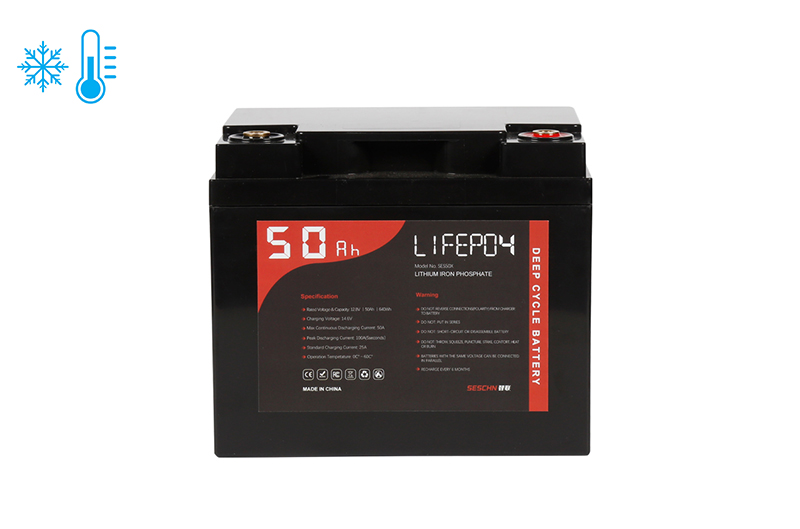

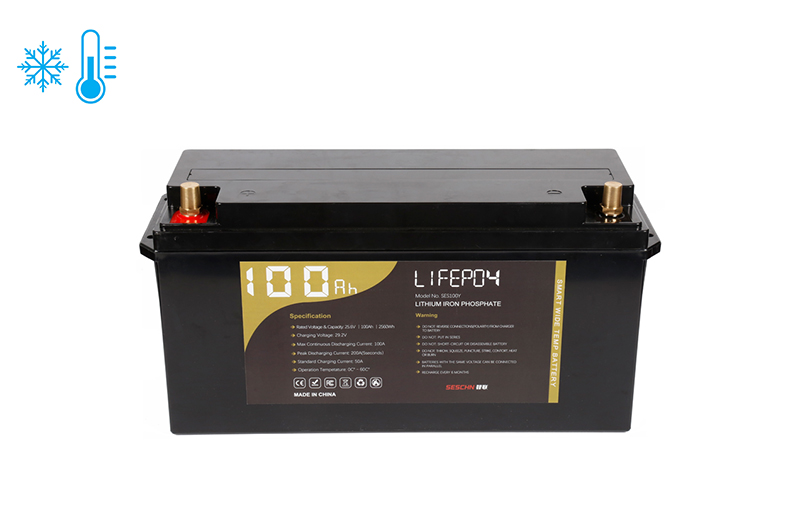

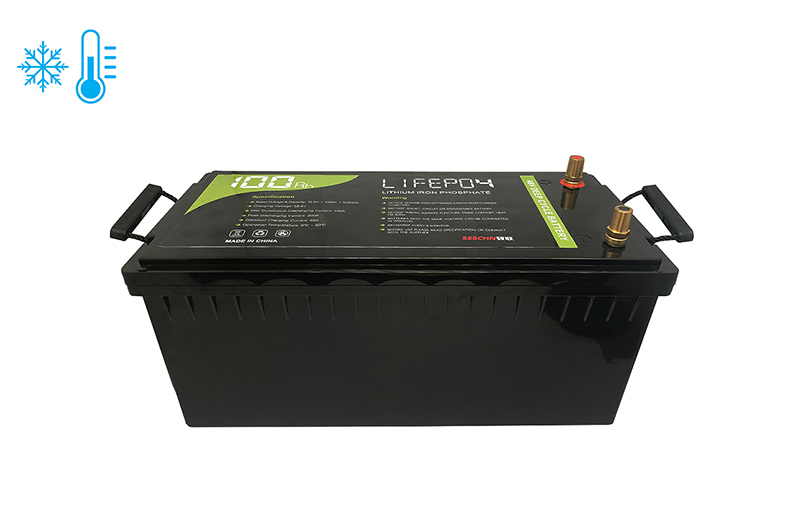

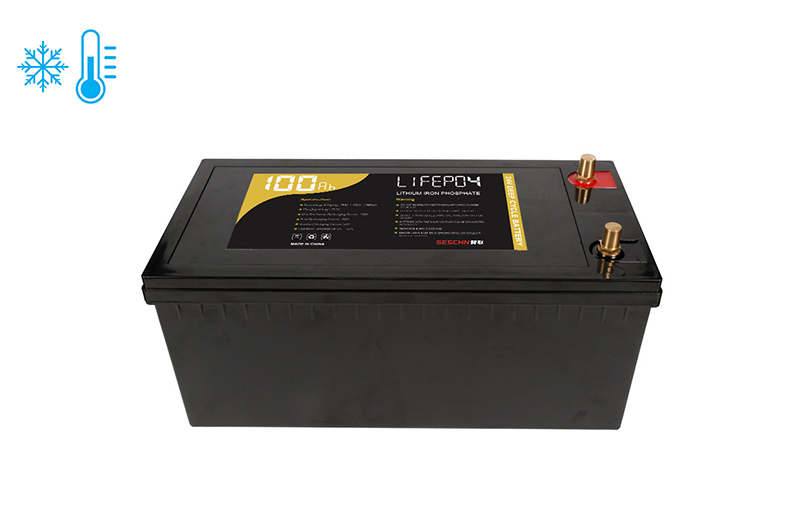

"LT" means Low Temperature Using Series

SES Power LT series LiFePO4 battery is specifically designed for cold temperature charging and discharging. It can be charged at temperatures down to -20°C (-4°F) and disarged at temperatures down to -40°C (-40°F).The LT Series LiFePO4 battery has the same size and performance as LT Series LiFePO4 battery but can be safely used when temperatures drop as low as -40°C. It is an ideal choice for use in RVs, off-grid solar, and in any application where charging in cold temperatures is necessary.

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Cont. Discharge Current (A)	Terminal Type & Layout	Discharge Temp. Range (℃)	Dimensions (LWH mm)	Weight (kg)	Max. in Series
DCB-1207-Y09-LT	12.8	7	7	15	F2 &Layout D	-40-+60	1516599	0.9	4
DCB-1212-Y19-LT	12.8	12	12	30	M6 &Layout D	-40-+60	15198101	1.7	4
DCB-1230-Y26-LT	12.8	30	30	30	M6 &Layout B	-40-+60	18176167	3.7	4
DCB-1240-Y29-LT	12.8	40	40	40	T11 &Layout C	-40-+60	174165130	4.7	4
DCB-1245-Y36-LT	12.8	45	45	45	T11 &Layout A	-40-+60	195133178	5.3	4
DCB-1250-Y38-LT	12.8	50	50	50	T11 &Layout B	-40-+60	198166170	6.0	4
DCB-1260-Y38-LT	12.8	60	60	60	T11 &Layout B	-40-+60	198166170	6.8	4
DCB-1260-Y39-LT	12.8	60	60	60	T11 &Layout A	-40-+60	230138213	6.8	4
DCB-12100-G31-LT	12.8	100	100	100	T11 &Layout A	-40-+60	329172223	11.0	4
DCB-12150-Y47-LT	12.8	150	150	150	T11 &Layout A	-40-+60	406173238	16.0	4
DCB-12200-G8D-LT	12.8	200	200	200	T11 &Layout C	-40-+60	520242229	21.0	4
DCB-12200-Y48-LT	12.8	200	200	200	T11 &Layout A	-40-+60	483172242	21.0	4
DCB-12300-G8D-LT	12.8	300	200	200	T11 &Layout C	-40-+60	520242229	32.0	4
DCB-2450-G31-LT	25.6	50	50	50	T11 &Layout A	-40-+60	329172223	11.0	2
DCB-2480-Y47-LT	25.6	80	80	80	T11 &Layout A	-40-+60	406173238	17.0	2
DCB-24100-G8D-LT	25.6	100	100	100	T11 &Layout C	-40-+60	520242229	21.0	2
DCB-24100-Y48-LT	25.6	100	100	100	T11 &Layout A	-40-+60	483172242	21.0	2
DCB-24150-G8D-LT	25.6	150	150	150	T11 &Layout C	-40-+60	520242229	32.0	2
DCB-24200-G8D-LT	25.6	200	200	200	T11 &Layout C	-40-+60	520242229	42.0	2
DCB-4850-Y48-LT	51.2	50	50	50	T11 &Layout A	-40-+60	483172242	21.0	1
DCB-48100-G8D-LT	51.2	100	100	100	T11 &Layout C	-40-+60	520242229	42.0	1

"LC" means Low Temperature Using plus Communication

SES Power LC series LiFePO4 battery has a built-in communication module(Bluetoolth or RS485) that lets you communicate with the battery using our free APP for Andriod mobile or computer.You can check the battery capacity or State of Charge (SoC),voltage, temperature, charge or discharge current simply by using the APP.At the same time, the LC series battery can be safely used when temperatures drop as low as -40°C(-40°F). The LC series is suited for RVs, off-grid solar, and in any application where charging in cold temperatures is necessary.

If you are interested in a model, please click on the corresponding name in MODEL NO.

Model No	Nominal Voltage (V)	Nominal Capacity (Ah)	Max. Charge Current (A)	Max. Cont. Discharge Current (A)	Terminal Type & Layout	Discharge Temp. Range (℃)	Dimensions (LWH mm)	Weight (kg)	Max. in Series
DCB-1230-Y26-LC	12.8	30	30	30	M6 &Layout B	-40-+60	18176167	3.7	4
DCB-1240-Y29-LC	12.8	40	40	40	T11 &Layout C	-40-+60	174165130	4.7	4
DCB-1245-Y36-LC	12.8	45	45	45	T11 &Layout A	-40-+60	195133178	5.3	4
DCB-1250-Y38-LC	12.8	50	50	50	T11 &Layout B	-40-+60	198166170	6.0	4
DCB-1260-Y38-LC	12.8	60	60	60	T11 &Layout B	-40-+60	198166170	6.8	4
DCB-1260-Y39-LC	12.8	60	60	60	T11 &Layout A	-40-+60	230138213	6.8	4
DCB-12100-G31-LC	12.8	100	100	100	T11 &Layout A	-40-+60	329172223	11.0	4
DCB-12150-Y47-LC	12.8	150	150	150	T11 &Layout A	-40-+60	406173238	16.0	4
DCB-12200-G8D-LC	12.8	200	200	200	T11 &Layout C	-40-+60	520242229	21.0	4
DCB-12200-Y48-LC	12.8	200	200	200	T11 &Layout A	-40-+60	483172242	21.0	4
DCB-12300-G8D-LC	12.8	300	200	200	T11 &Layout C	-40-+60	520242229	32.0	4
DCB-2450-G31-LC	25.6	50	50	50	T11 &Layout A	-40-+60	329172223	11.0	2
DCB-2480-Y47-LC	25.6	80	80	80	T11 &Layout A	-40-+60	406173238	17.0	2
DCB-24100-G8D-LC	25.6	100	100	100	T11 &Layout C	-40-+60	520242229	21.0	2
DCB-24100-Y48-LC	25.6	100	100	100	T11 &Layout A	-40-+60	483172242	21.0	2
DCB-24150-G8D-LC	25.6	150	150	150	T11 &Layout C	-40-+60	520242229	32.0	2
DCB-24200-G8D-LC	25.6	200	200	200	T11 &Layout C	-40-+60	520242229	42.0	2
DCB-4850-Y48-LC	51.2	50	50	50	T11 &Layout A	-40-+60	483172242	21.0	1
DCB-48100-G8D-LC	51.2	100	100	100	T11 &Layout C	-40-+60	520242229	42.0	1

Low Temp. 12V Series with Communication

Low Temp. 24V Series with Communication

Low Temp. 36V Series with Communication

Low Temp. 48V Series with Communication
