As the most commonly used electronic testing equipment, multimeters are almost everywhere. As a practitioner in the electronics industry, mastering the basics of a multimeter is almost a default skill.

The lithium-ion battery industry belongs to the category of electronics + chemical industry, that is, chemical energy is converted into electrical energy and used efficiently. When the lithium-ion battery is packed, the multimeter is used more frequently, because both the PCM and the BMS are highly integrated circuit boards.

SES Power's products, such as 12V100Ah, 24V100Ah, 36V100Ah, 48V100Ah using EVE, CATL, BYD square aluminum lithium iron phosphate batteries, wall-mounted home energy storage systems 48V100Ah, 48V200Ah, rack-mounted high-voltage lithium battery systems (up to 860V ), 3Kw~20Kw off-grid, grid-connected, island-type lithium battery energy storage systems, lithium iron phosphate batteries that can be discharged at a rate of -40 degrees Celsius, etc. These products are closely matched with electronic tools such as multimeters, oscilloscopes, and current meters. of. Let our senior engineer explain to you how to use the multimeter correctly.

A: Some wrong practices of the multimeter

a1. Replace the fuse of the original multimeter with a cheap fuse

If your digital multimeter (DMM) meets its identified electrical safety standards, then the fuse should be a fuse with a special safety feature that guarantees quick disconnection before severe overload occurs for instrument and personal safety.

When you need to replace a DMM's fuse, be sure to use a fuse that meets safety regulations and is approved for use.

a2. Use a piece of metal wire or metal sheet to replace the multimeter fuse

This may seem like a quick fix when you can't find a spare fuse on hand, but such fuses can pose serious security concerns.

a3. Use of inappropriate tools for the work performed

It is important to choose the right DMM for the job to be done. First, make sure that the DMM (or other test tool) has the correct CAT (electrical safety) rating for each test situation being performed, even if it is a day by switching to a different DMM; second, Make sure that the maximum continuous working voltage of the digital multimeter meets the actual test needs.

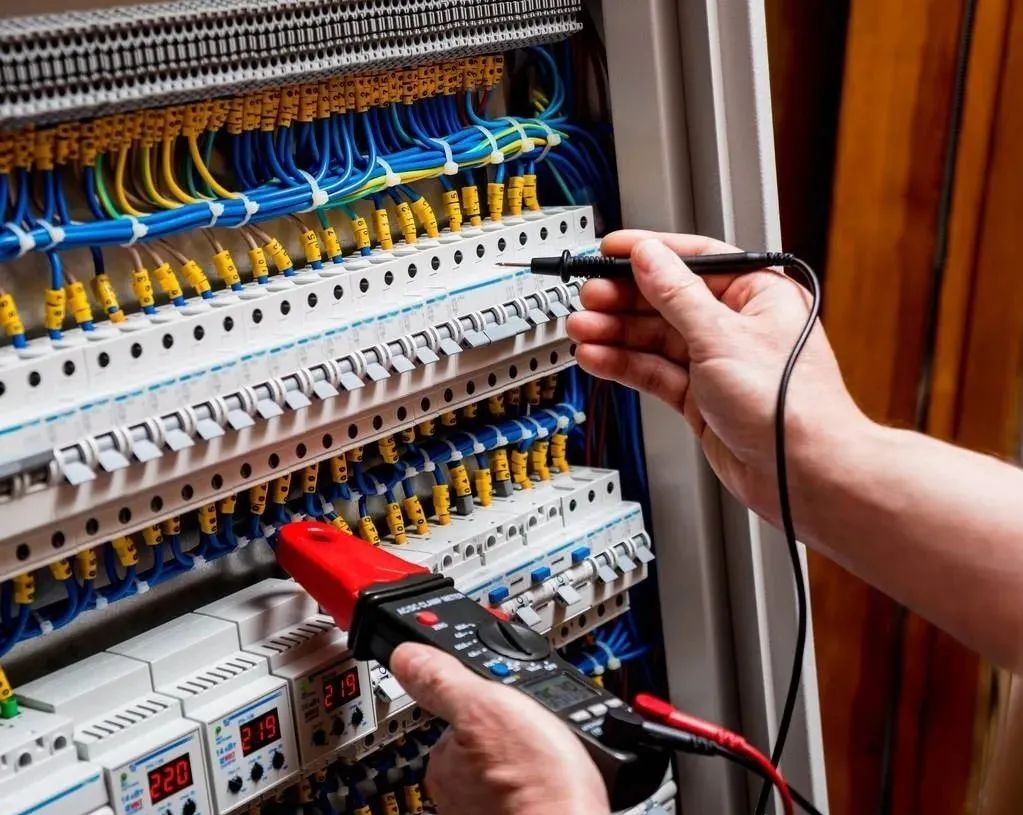

a4. When using a multimeter to measure a live line, power off the line as much as possible

If it is necessary to measure live lines, be sure to use the correct insulating tools, wear ear protection, safety glasses, an arc shield, and insulating gloves, remove watches or other jewelry, stand on insulating mats, and wear flame retardant overalls (not normal work clothes).

a5. Ignore the test line

Test leads are an important aspect of keeping your digital multimeter safe. Make sure the test leads are also CAT rated for electrical safety for the job; and use test leads that have double insulation (silicone material), shielded input connectors, finger guards, and a non-slip surface.

a6. Perform the test with both hands at the same time, never do this!

One trick to keep in mind when measuring live lines: keep one hand in your pocket. This makes it difficult to form a closed circuit through the anterior chest and the heart.

Hang or lower the multimeter whenever possible and avoid holding the multimeter in your hands to minimize the risk of exposure to transient voltages. Of course, in higher hazard measurements, additional measures should be taken to reduce the hazard and arc flashover risk. These additional measures include the use of protective equipment specified in the National Electrical Code (such as protective gloves, clothing, and goggles) to provide arc protection.

B: Precautions for using a multimeter

b1. It is a good habit to develop a good habit of using a multimeter, that is, before each measurement, take a look at whether the position of the gear is correct. With such a habit, the chance of burning the watch will be greatly reduced.

b2, the selection of the range should try to make the pointer indicate near two-thirds of the full scale, and the reading is more accurate. If you do not know the magnitude of the measured voltage and current, you should select a large range block, and then re-adjust the range according to the size of the reading to make the reading accurate.

b3. When measuring resistance, it must be reset to zero after changing the range block, so that the reading can be accurate. If it cannot be adjusted to zero, it means that the battery voltage in the meter is insufficient, and the battery should be replaced.

b4. When measuring the resistance online, the power supply should be cut off for operation, and attention should be paid to whether there are other components forming a parallel circuit with the measured resistance. If necessary, one end of the resistance can be welded from the circuit and then measured. For circuits with electrolytic capacitors, discharge the capacitors before measuring.

b5. When using the multimeter, you should develop the habit of not touching the metal part of the test pen with your hands to prevent electric shock accidents. At the same time, when measuring resistance, if you touch the metal part of the test lead, the reading will be affected.

b6. When measuring DC voltage, the red pen is connected to "+", and the black pen is connected to "-", so as to prevent the reverse polarity of the needle from deflecting the needle and damaging the needle. If you do not know the positive and negative polarity, you can first dial to the high-range gear, quickly touch the measured point with the test pen, and observe the swing direction of the pointer to determine the correct polarity. In particular, do not use the mA block or electrical block to measure the voltage by mistake, otherwise the meter will be burned out.

b7. When measuring the current, it is absolutely not allowed to connect the two test pens across the power supply, so as not to burn the meter head. A general multimeter can only measure DC current, not AC current.

b8. After the meter is used up, the range switch should be placed in the highest voltage gear. For multimeters with shorted or disconnected gears, they should be placed in the corresponding gears to prevent damage to the instrument due to carelessness when others use it.
